WOOD CNC ROUTER MACHINE

Short Description:


Product Detail

Product Tags

MACHINE FEATURE:

1.HQD 9.0kw air cooling ATC spindle,high precision,long life time,steady working,easy to start up.

2.huge thickness square pipe structure ,well welded, no distortion for whole structure high precision ,and long life time.

3.Taiwan LNC controller system with USB interface,working without connecting with computer during working and easy to control.

4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.

5.auto oilling system ,easy to operate by pressing one key.

6.seperated control system makes operation easily.

7.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min.

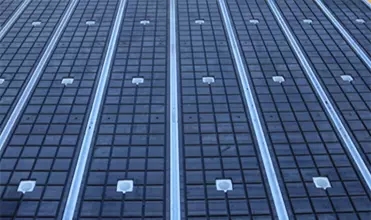

8.The vacuum table holds tightly the carving materials which makes operating more reliable and convenient.

MACHINE PARAMETERS

Items Standard
Model No. UW-A2030L
Machine body Thickness tube welding structure
Working area(mm) X 2000
  Y 3000
  Z 350
Structure Table  size 2150*3500
  table Vacuum T slot table with powerful vacuum pump
Transmission system X Taiwan HIWIN square guide rail ,TBI ball screw driving
  Y Taiwan HIWIN square guide rail ,TBI ball screw driving
  Z Taiwan HIWIN square guide rail ,TBI ball screw driving
Spindle Power 9 kw HQD air-cooling ATC spindle
  Rotating Speed 18000rpm
  Cooling Type air- cooling/pump
  Collet diameter ER 32 Ø3.175,4,6 8 12.7
Inverter DZB200M2005.5L Fuling
About drive systems X Leadshine 1500W servo motor and driver+Shimpo reducer
  Y Leadshine 1500W servo motor and driver+Shimpo reducer
  Z Leadshine 1500W servo motor and driver+Shimpo reducer
Control System Taiwan LNC Control system
Data reading mode line by line
Compatible file formats G code /PLT/DXF/ENG
Compatible CAD/CAM Softwares JD pait/Type3 / Artcam /
Working Voltage 3 phase AC380V/50/60Hz,
Precision 0.05mm
speed 30000-45000mm/min
XYZ Positioning Accuracy (MM) <0.01
Repetitive Positioning Accuracy(MM) <0.03
Gantry Height (From Table) 250 mm
Gantry made of   Thickness Steel tube
oil-inject lubrication system Auto Oil system
Power off memory Function of re-carving after break point and power failure
Accessories Collets 3pcs+,(φ3.175, φ4, φ6 φ8  φ12.7) ER 32

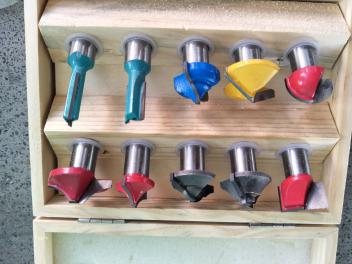

  Cutter knives 20pics
Maintenence tools Tool Box Available
Maintenance Service can be supplied on line
Guarantee / Warranty 30 MONTHS
Tech Support Available  - Online / Phone
Damaged / Spoil spare part support Available
Weight Net 2400kg
  Gross 2600kg
Delivery Time 10-15 WORKING DAYS
optional Side rotary device :diameter:200mm,  length:2500mm

MAIN CONFIGURATIONS

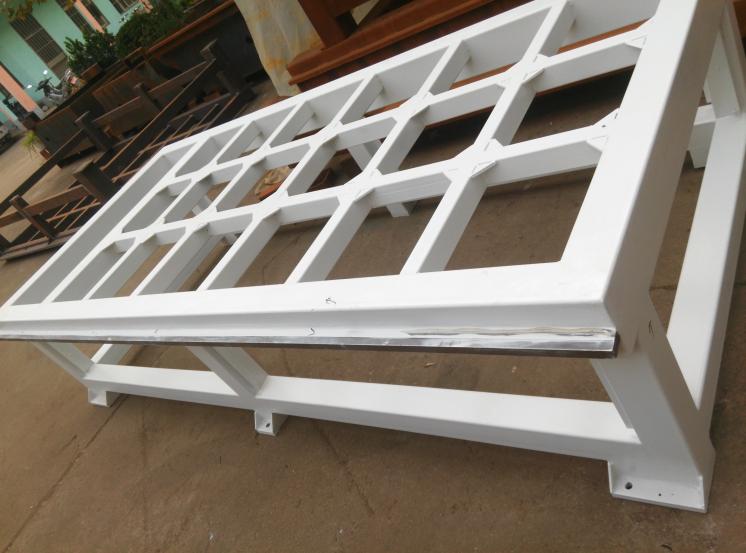

Thickness tube welding body structure

Vacuum T slot table

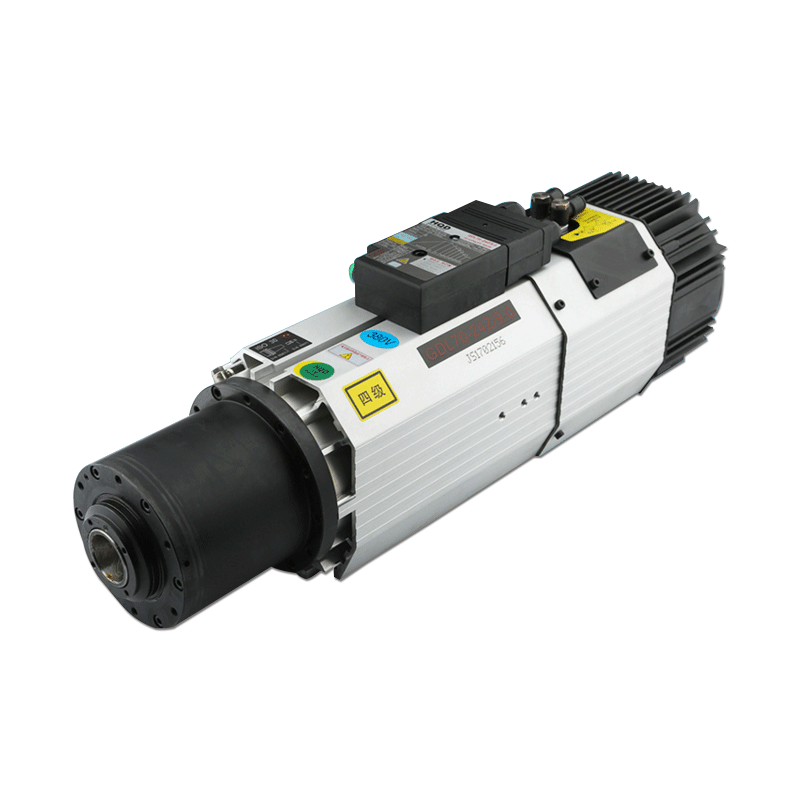

Famouse HQD Air cooling ATC spindle

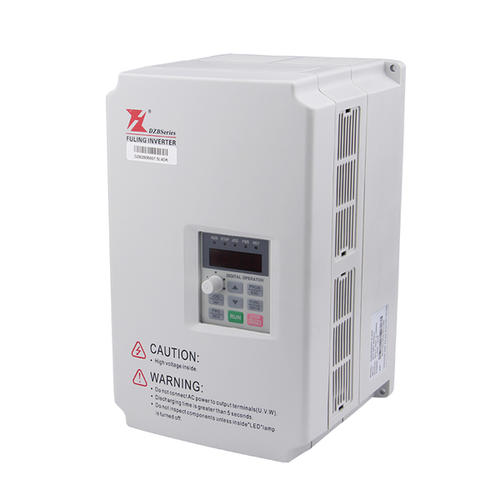

Fulling inverter

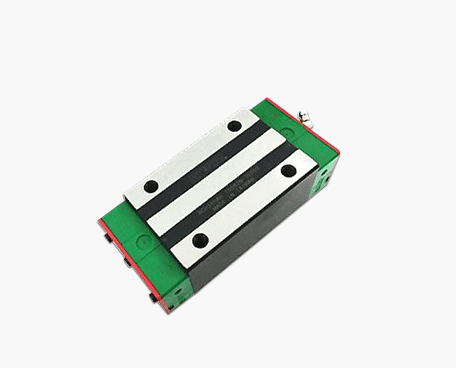

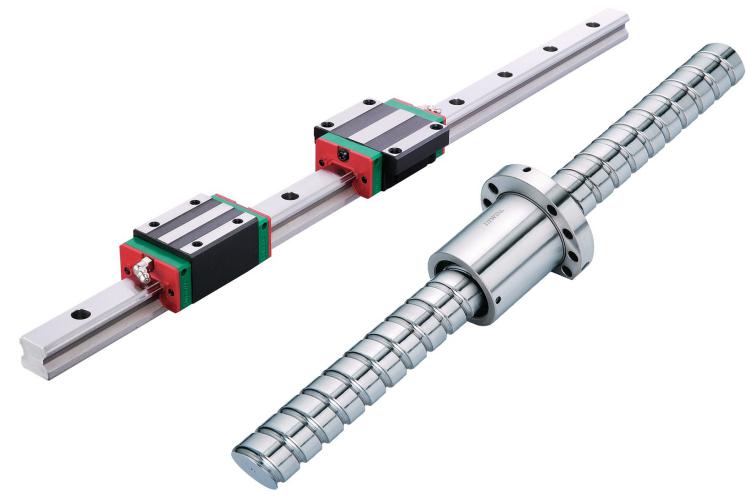

HIWIN square guide rail and TBI ball screw

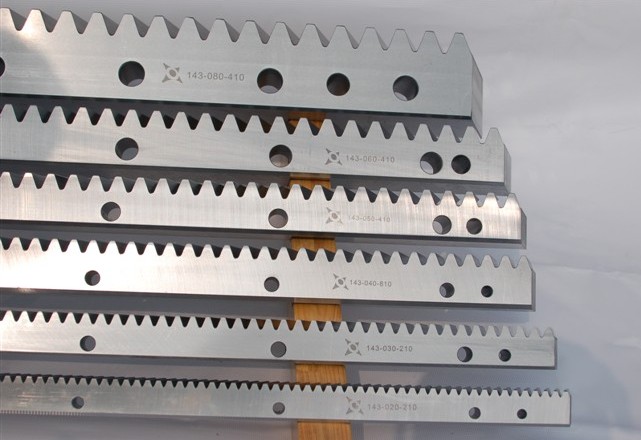

XINYUE rack pinion

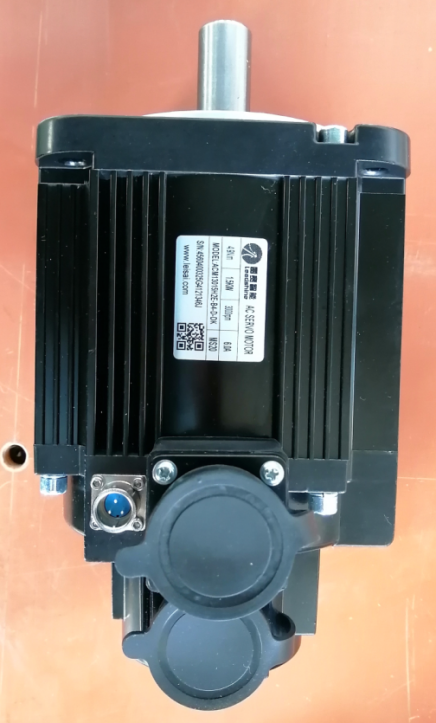

Leadshine 1500W servo motor

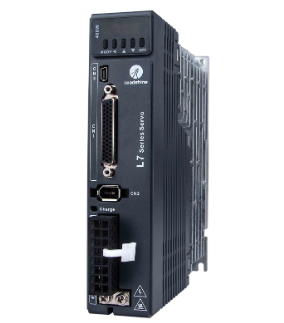

 servo driver

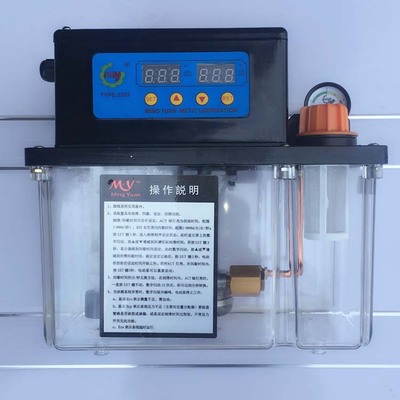

Auto oiling system

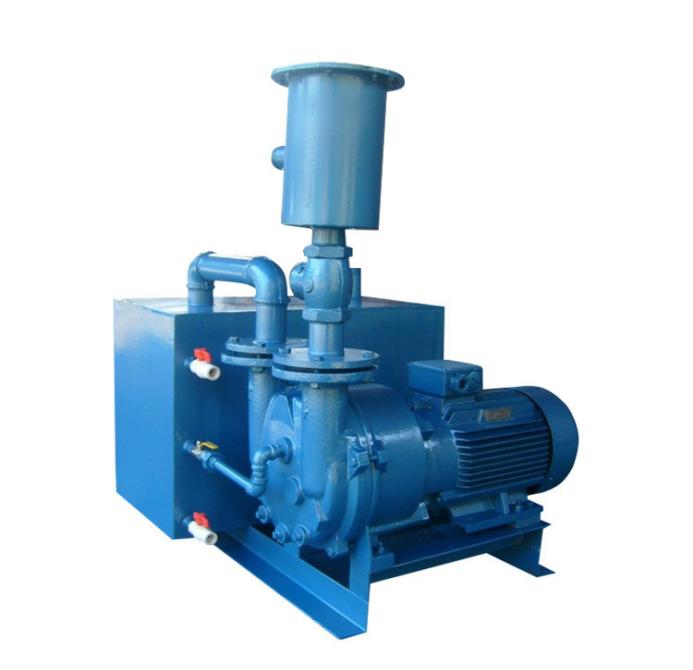

Powerful vacuum pump

 image14 image15 image16 image17

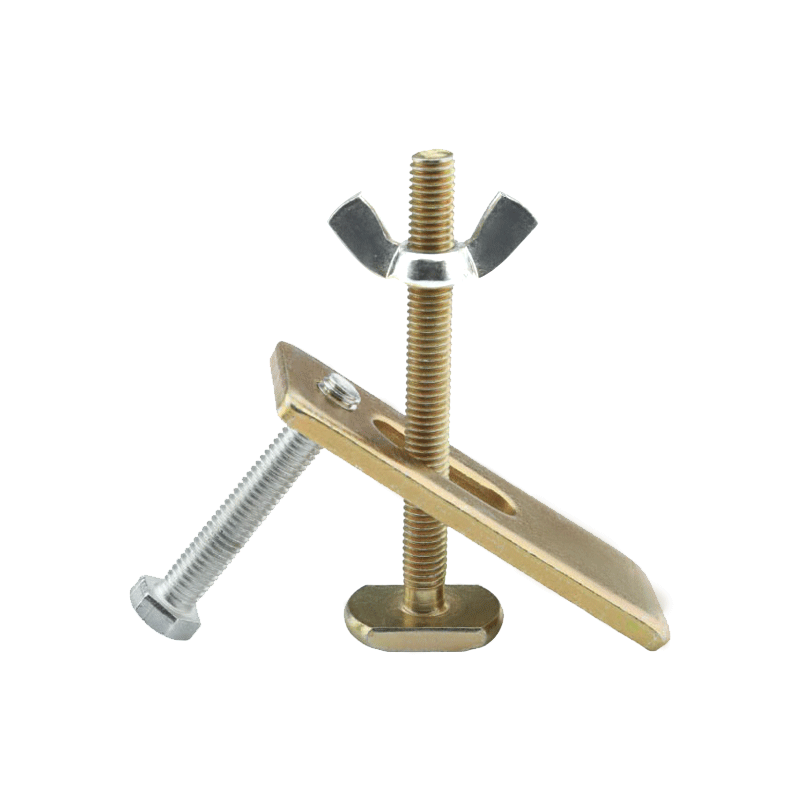

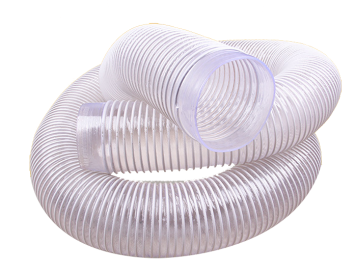

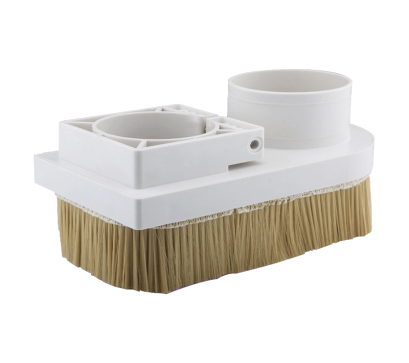

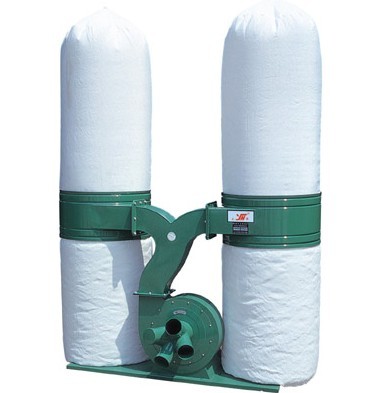

Dust collector .clamp,pipe dust shoe etc

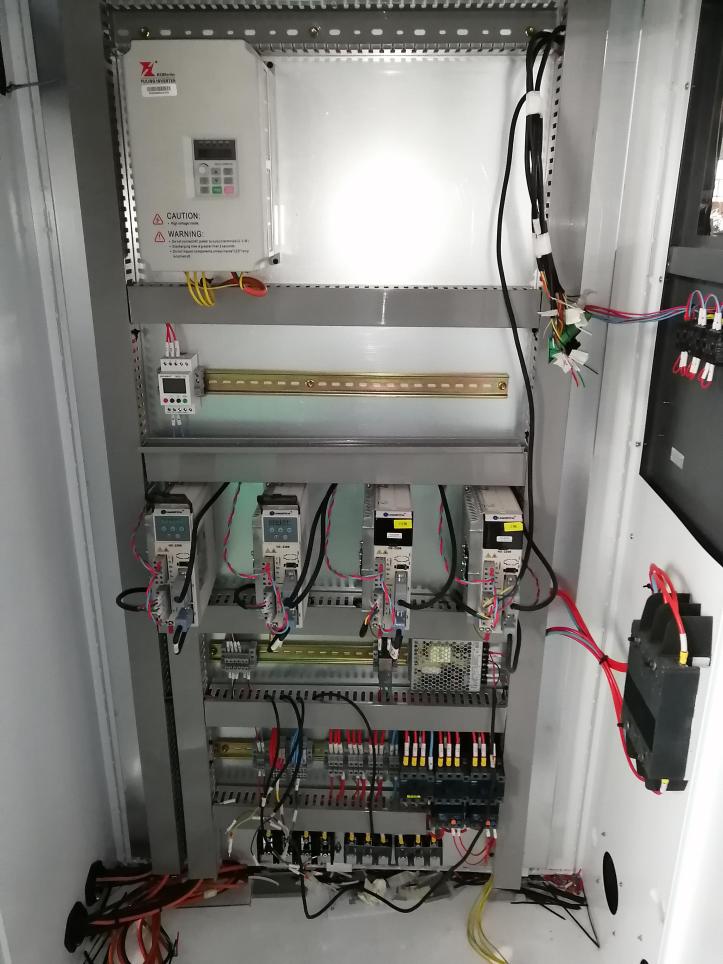

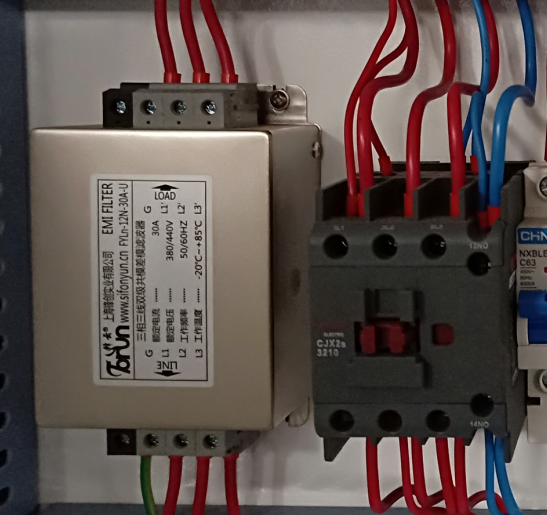

Control cabinet inside Electrical device

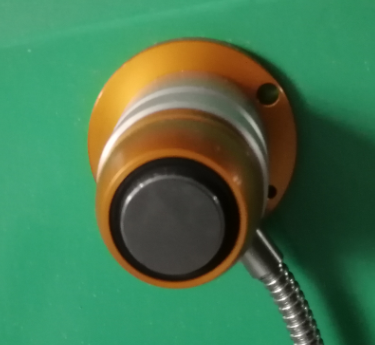

Tools sensor

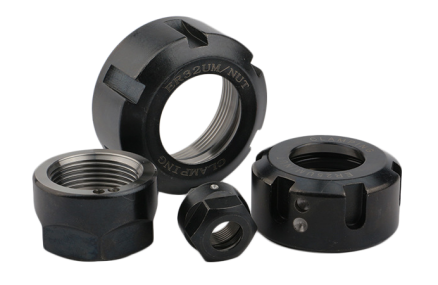

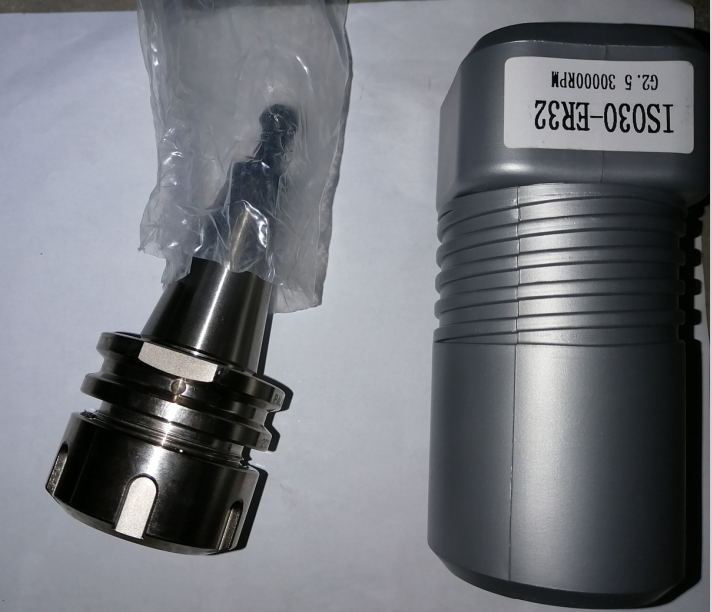

ER 32

Application

WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cupboarddoors, interior doors, sofa legs, headboards and so on.
Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding,and other advertising materials derivatives making.
Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting,PVCpipe, wooden planks and other non-metallic mold.
Relief Sculpture and 3D Engraving & Cylindrical object.

SAMPLES


SPARE PARTS

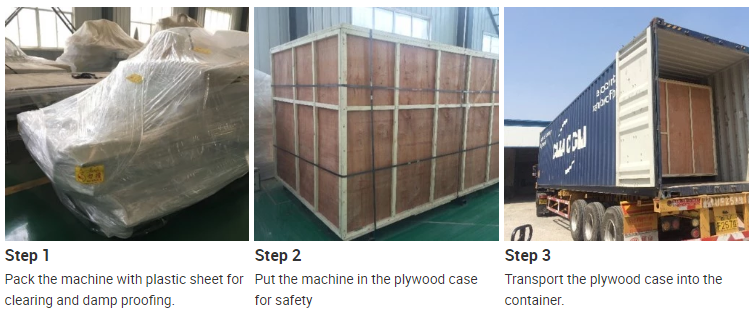

PACKING


WARRANTY AND SERVICE

1. Engineers availbal to service machinery overseas.
2. 2.5 year guarantee for whole machine.
3. Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 24 hours to solve it.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine,we will provide the best price for you.
6. Friendly English version manual and operation video CD disk.
