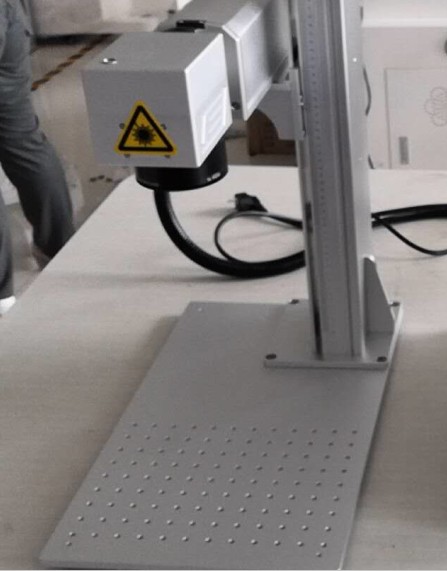

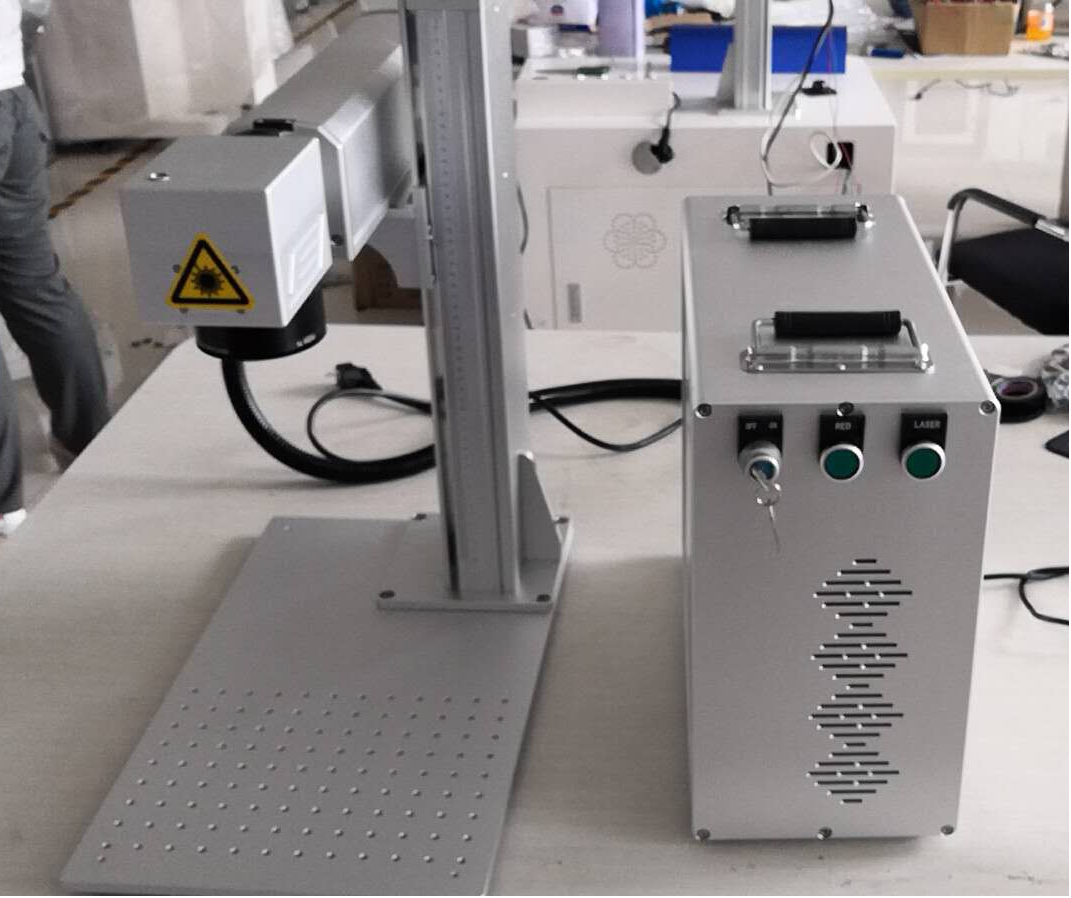

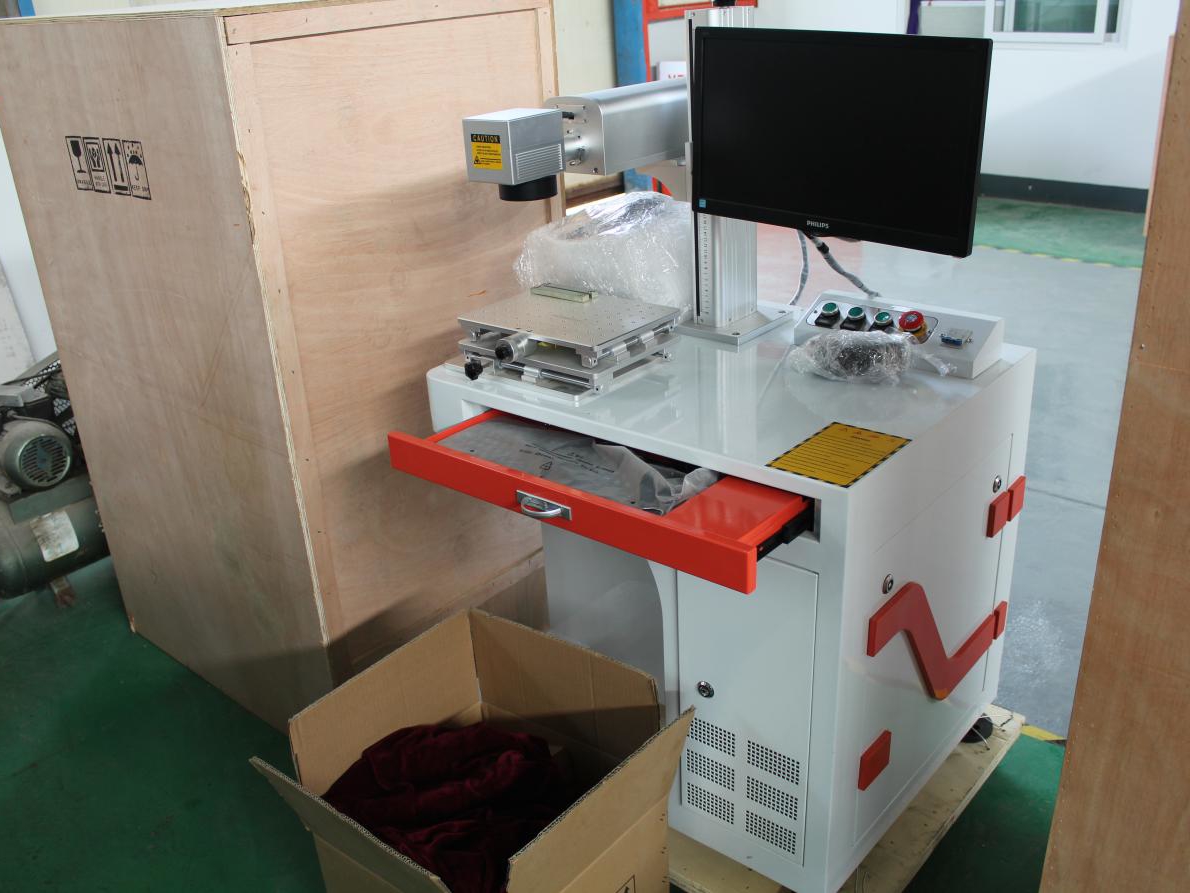

Optical fiber marking machine

Fiber Laser

Optical fiber laser integrated structure, no optical pollution, no power of the coupling loss, compact structure compact, air cooling, one machine two functions.

Excellent beam quality

The optical fiber laser is the medium mixed yb double-clad fiber, resonant cavity length, so the beam quality is very good, M2 value is 1.1, the output flare diameter can achieve 10 microns.

Excellent beam quality to ensure that optical fiber laser marking machine in a variety of material satisfying marking effects, widely applied in most metal marking industries (such as brass, titanium, steel, iron, aluminum and so on) and non metal materials like cloth, fabric, PVC, MDF, leather, acrylic, plastic and etc.

Laser long service life

IGF series optical fiber laser marking machine use 1064 nm laser diode as the sources are used to pump, the average working hours can up to 100000 hours.

Small and exquisite Volume , applicable in the bad environment

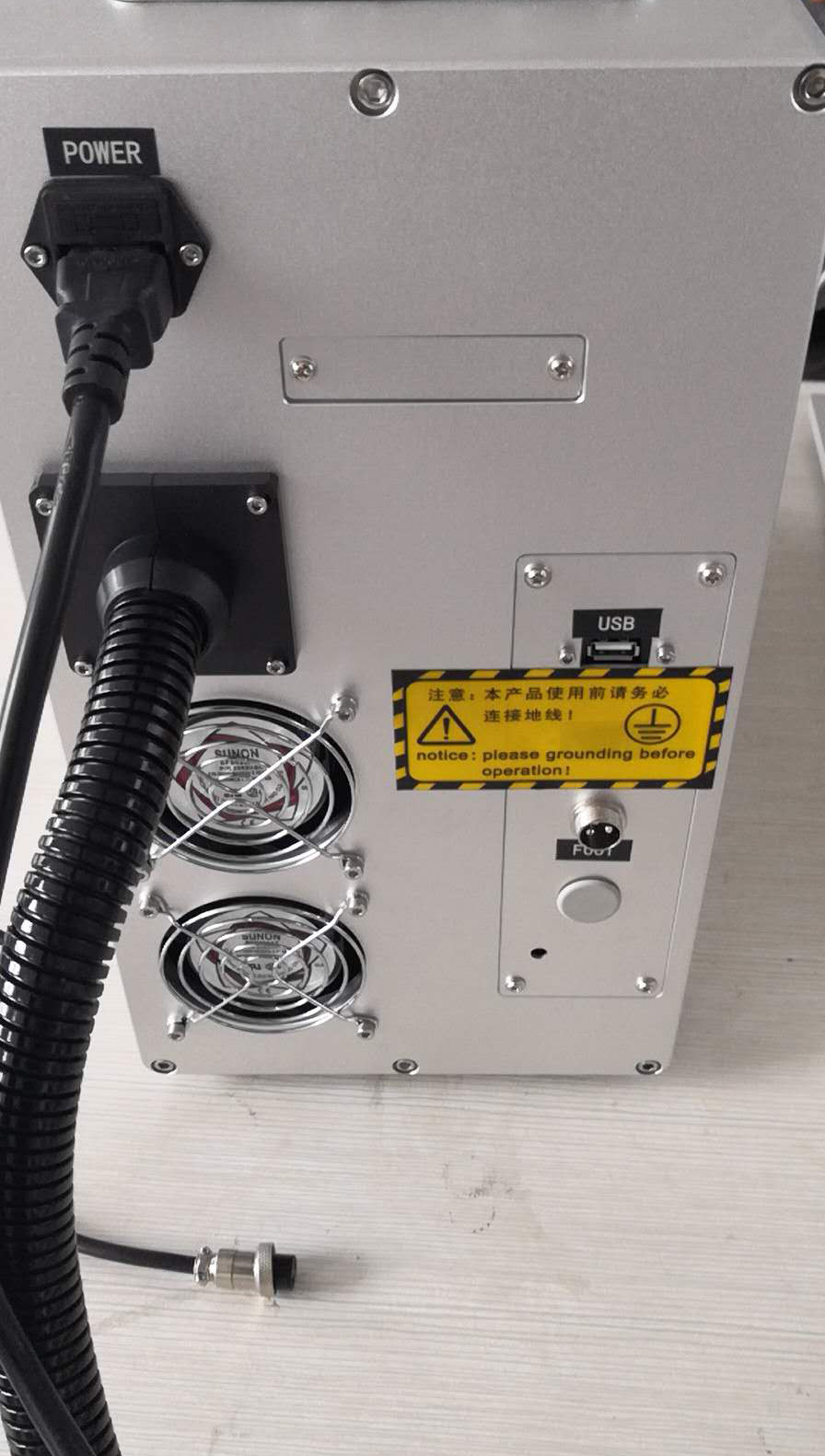

Optical fiber surface area/volume ratio is high, also good cooling effect, no need huge water cooling system, just simple air cooling, can be running in bad conditions, such as high impact, high vibration, high temperature, dirt under the conditions of the normal operation.

Free maintenance operation

Optical fiber laser no need for any maintenance (not including adjust or clean lens)

Light path and galvo scanner

The optical system: 1064 nm based on the high precision, vibrating mirror reflection focusing system.

Laser correction: choose red visible laser collimator's systems instructions axis position, indicating light and laser coaxial, in the process to tracing the function of the instructions and timely and accurate registration.

Galvo mirror is set to track operation of the laser executive mechanism, and it mainly consists of high accuracy servo motor, motor driven plate, mirror, F-θ lens and dc supply of power.

Computer control system

Desktop Industrial Computer with WINDOWS operating system in English

Special marking software

Marking software in WINDOWS interface,English operating system, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD and so on many kinds of drawing software:time date, bar code, serial number, mark, output in English, graphics, all kinds of bar code, Qr code, etc. Word stock the function is all ready, 200 kinds of fonts, can customize wired font, creating one of the proprietary dictionaries.

Applicable industry and material:

>>Applicate materials

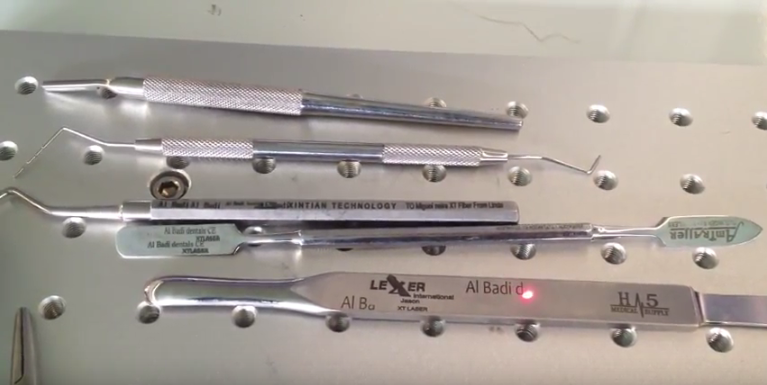

Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc

Alloy and metal oxides: Anodized Aluminum

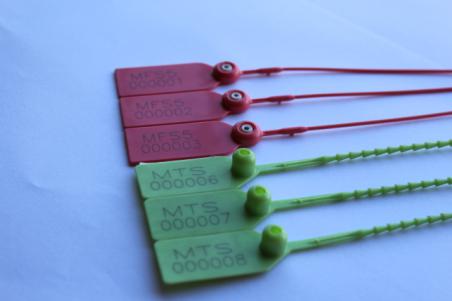

Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.

>>Applicate Industry

1.Electrical Engineering and Electrical part and component

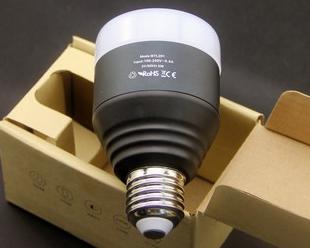

2.Mobile (Cover, battery, keyboard, IPhone Case)

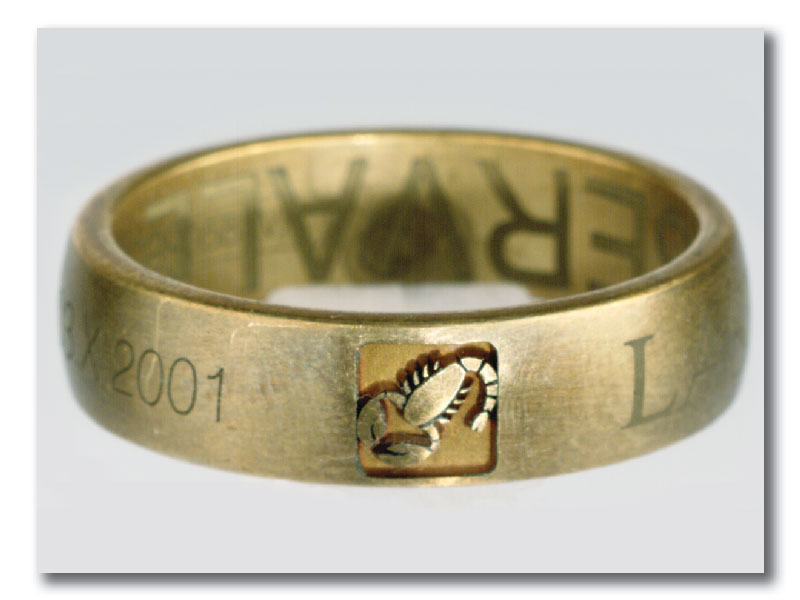

3.Jewellery(Ring, pedeant, bracelet),eyeglass,clocks and craft

4.Building materials,PVC pipe

5.Car motor car spare part, Insturment and meters and cutting tool

6.plastic case,aviation and aerospace,

7.military product,hardware fitting and accessory,sanitary appliance

8.food and beverage ,Medicine package and medical instrument,solar Pv industry

After sales Service

1.24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.

2.One-year warranty is provided.

3.Professional staff for installation and training if needed.

4.Spare parts are supplying on time or doing some inventory if promising certain sales volume.

5.Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.

6.If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype.
