Multi-Heads Wood Cnc Router 3d Cnc Engraving Milling Machine

Short Description:

Multi-head and multi-spindle engraving machine: This equipment is designed to improve processing efficiency. The dual-spindle can process two workpieces at the same time. You can use a single spindle to work, or you can use two spindles to work at the same time. Equipped with dual rotating axes at the same time, it can process 2 cylinders.


Product Detail

Product Tags

Feature Of Machine

1. Machine body design with high strength and double driving motors of Y axis, which have more reasonable design, fast processing speed, easy-operated maintenance and low fault rate.
2. Advanced CNC processing system has powerful functions and humanized operation, as well as can receive data through U disk or network.
3. Imported and high precise linear guide ways have features such as stable operation, high precision and steady support, which prolong service life of machines.
4. Z axis adopts imported ball screw with industrial level can positioning accurately and make processing effects more perfect.
5. Energy-saving vacuum absorption table function and dust collectors can protect the environment.
6. Water cooling and constant torque spindle with the imported bearing, high power and low noise.

Application

Woodworking industry: stereo wave board processing, cupboard door, craft wood door, wenqi door, screen, process window home furniture product milling form sculpture. Mainly for the production of cupboard door, real wooed, the furniture and so on, also can be used in the production of MDF cutting.

Panel furniture: wood panel cabinet making, recommend model: automatic loading unloading penal processing cnc router with drilling/boring bits.

Main Configuration

Descriptions Parameters
Modle UW-FR1325-2
Working area 1300x2500x200mm
Machine size 2000x3100mmx1700mm
Guide Linear 20 square/Taiwan
Control System DSP A11
Table Aluminum T slot working table
Spindle water cooling 3.2kw *2
Motor Stepper Motor
Inverter Fuling
Ball screw Taiwan TBI ball screw
Rail Taiwan HIWIN brand
Max.speed 35000mm/min
Max cutting speed 25000mm/min
Spindle speed 18000/24,000RPM
Working voltage AC380V/50-60Hz, 3-phase
Software Artcam & Alphacam /UK
Packing dimension 2280x3200x1800mm 1300kgs
Command code G code
Rotary diameter 200mm or customized

Other hot sale stone cnc router for reference, if you are interested in it, pls contact me to confirm the main configurations:

Our service

Guarantee and After-sale service:

1. 24 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.

FAQ

Q: Are you manufacturer(distributor)?

A: We are manufacturer, we have our own plant and workshop. welcome to visit our workshop and the specific address in the homepage of the website, or contact us online.

Q: How can i get the price?

A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q: Can I buy samples placing orders?

A: Yes. Please feel free to contact us.

Q: What is your lead time?

A: It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.

Q: What is your payment term?

A: T/T, Western Union, L/C, and Paypal. This is negotiable.

Q: What is the shipping method?

A: It could be shipped by sea, by air or by express(EMS, UPS, DHL, TNT, FEDEX and ect). Please confirm with us before placing orders.

Main parts

1112





HIWIN Square guide rail and TBI ball screw.
More high accuracy and running stable







3















Quality Leadshine driver
Signal input is more stable, effectively reducing other signal interference













5















Import WMH rack pinion
High-precision rack and pinion, running more smoothly













6









Vacuum table with T slot table
Easy fixed the materials not only can fixed by clamps ,but also can Use vacuum adsorption .







8







Rotary device (for optional)
Can can put the device on the table process on the cylinder and beam. When process on the cylinder, then put on the table, when process on the flat, then remove it is ok. Very convenient and practical.





10









Auto oiling system
Automatically oiling for the guide rail and rack pinion

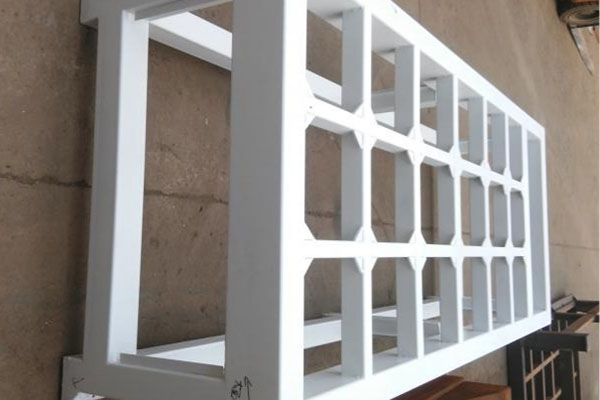

Heavy duty body structure.
Can effectively reduce the vibration caused by exercise, thereby improving accuracy.









2









Powerful Stepper motor
Much more powerful and running quickly









4













One-piece tooth box
Effectively reduce accuracy problems caused by assembly problems











6.1
6.2











Fuling inverter
The signal control is more stable, making the spindle run more smoothly









8









Ruizhi Auto DSP control system
Off line control the machine, can control the machine easily without computer







9













Powerful HQD 5.5kw Spindle
More powerful to improve the efficient







13

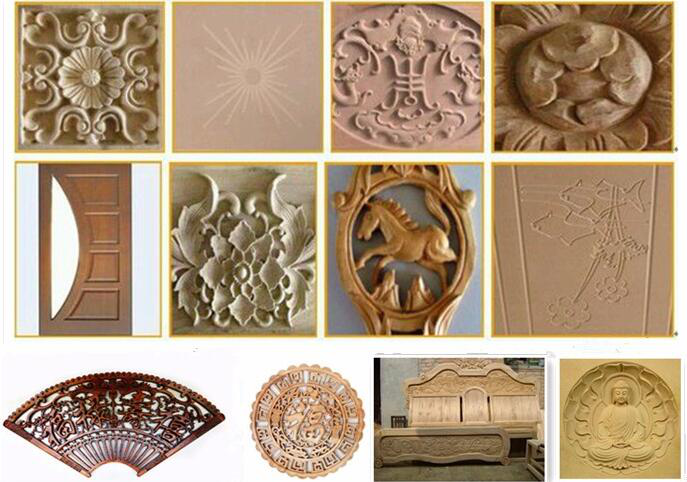

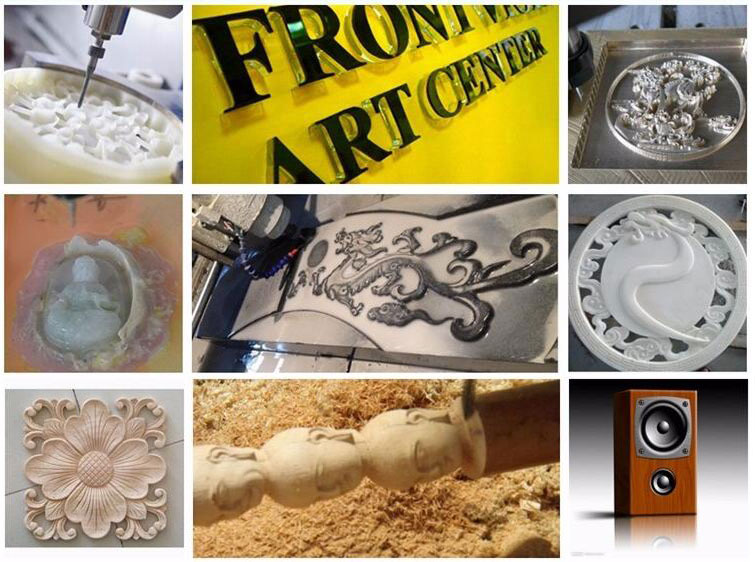

Make product display


Machine accessories

1)-Tool box

1.2

5)-software

1.6

2)-Spanner

1.3

6)-Router bits

1.7

3)-Clamp plate

1.4

7)-PCI card and data wire

50

4)-Collets

1.5

8)-U FLASH DISK

1.9

Packing and shipping

2.0
