Mini co2 stamp laser engraving cutting Machine for agent price
1. Transmission: Adopt YAKO stepper motor with Linear Rail transmission greatly improve the response speed & cutting precision of equipment, extend the time of using.
2. Constant light system :The machine uses the constant light,achieving high precision cutting of the whole area.
3. High precision and stability: with precision Japan ONK belt & China Taiwan PMI Linear Rail transmission mechanism and optimized
the Ruida RDC 6442 system controller, it can meet the precision parts processing ,also can work for long hours.
4. Adopt RECI / EFR/Yongli sealed CO2 glass laser tube, main consumable items are electric energy, water cooling, auxiliary gas and laser light.
5. Stronger structure,easy operation ,stable laser device and low maintenance cost.
Applicable Industry:
1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell
2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.
4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.
5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.
6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.
7.Product Identification Industry: Security marking products, etc.
Applicable Material:
Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf , Double-color sheet, bamboo, Plexiglas, paper, leather, marble, ceramics , etc
|
Model |
UC-3050 |
|
Working Size |
300mm *500mm |
|
Laser Tube |
Sealed CO2 glass Tube |
|
Working Table |
Blade platform |
|
Laser Power |
50W |
|
Cutting Speed |
0-60 mm/s |
|
Engraving Speed |
0-500mm/s |
|
Resolution |
±0.05mm/1000DPI |
|
Minimum Letter |
English 1×1mm (Chinese Characters 2*2mm) |
|
Support Files |
BMP,HPGL,PLT,DST and AI |
|
Laser head |
Double laser head |
|
Software |
Rd works |
|
Computer system |
Windows XP/win7/ win8/win10 |
|
Motor |
Stepper Motor |
|
Power Voltage |
AC 110 or 220V±10%, 50-60Hz |
|
Power cable |
European Type/China Type/America Type/UK Type |
|
Working Environment |
0-45℃(temperature) 5-95%(humidity) |
|
Z-Axis Movement |
Motor control up and down, (0-100mm adjustable) |
|
Position system |
Red-light pointer |
|
Cooling way |
Water cooling and protection system |
|
Gross Weight |
80KG |
|
Package |
Standard plywood case for export |
|
Warranty |
All life free tech support, two year warranty, except consumables |
|
Free accessories |
Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable |
|
Optional parts |

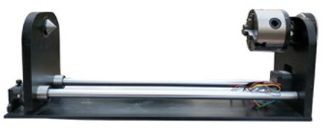

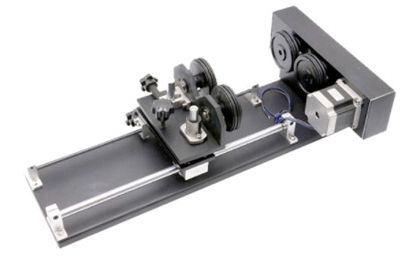

Spare Focus lens Spare Reflecting mirror Spare Rotary for cylinder materials Industrial Water Chiller |
Packing:
1.First innermost layer is EPE pearl cotton film package.
2.Then middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.At last packing into wooden box.
* Two years warranty,during warranty can be provide parts for free.
* can help customer do Sample testing support.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Main Reference pictures:
 |

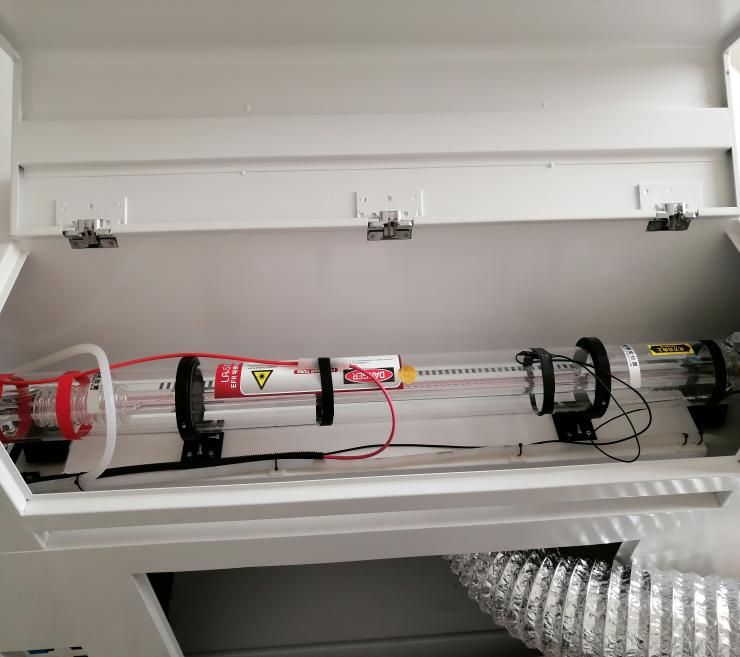

1) Powerful laser tube |

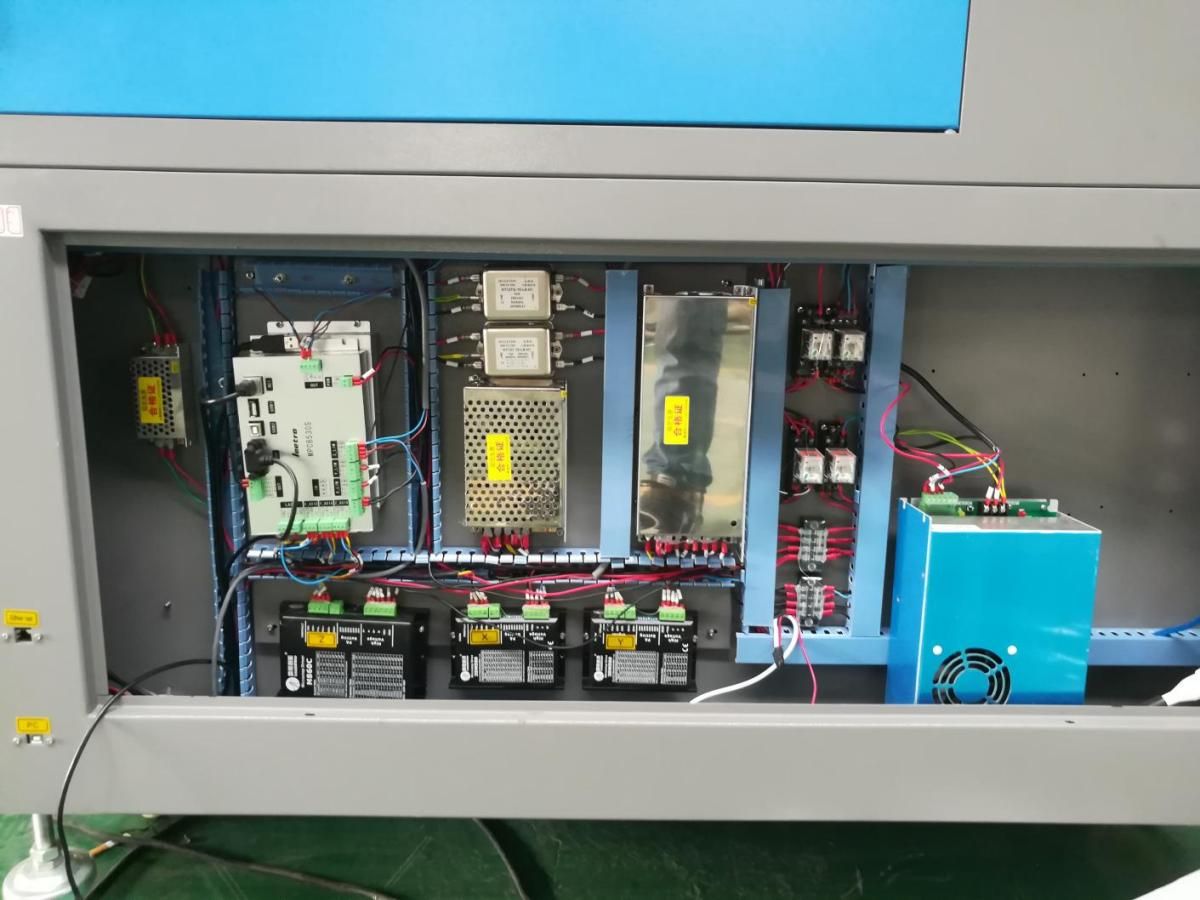

| 2) Main electronic component in control box |  |
 |

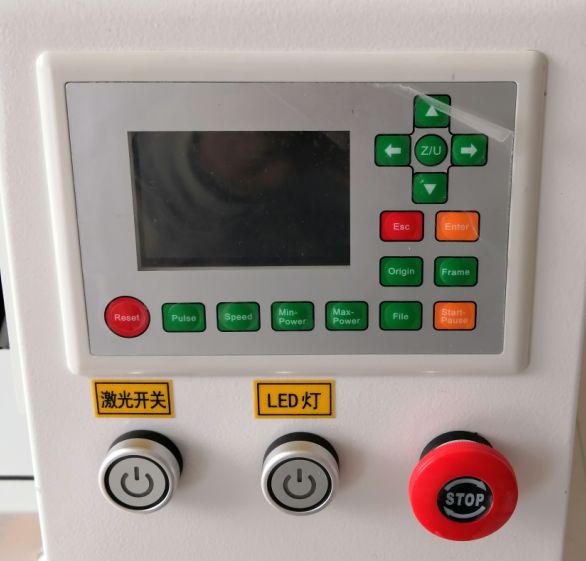

3) Rdcam control system |

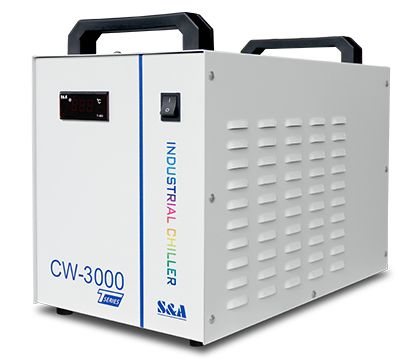

| 4) Cooling system CW-3000 water chiller |  |
 |

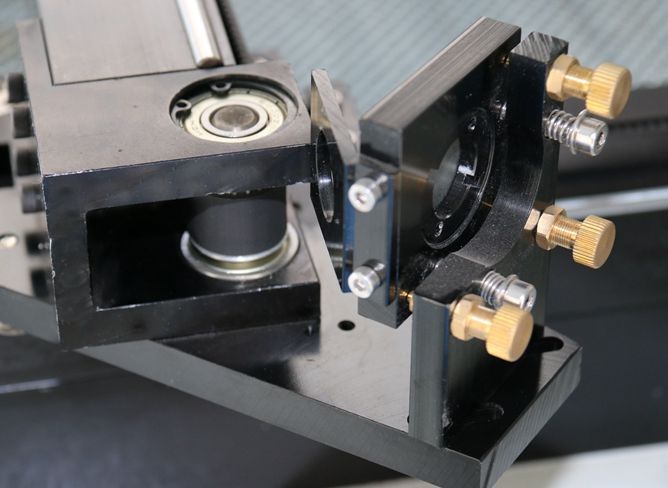

5)Reflector and line |

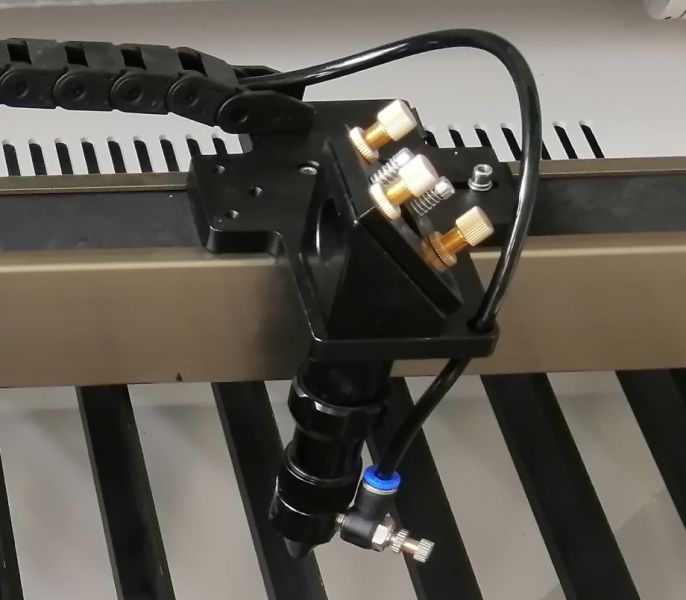

| 6）laser head |  |
 |

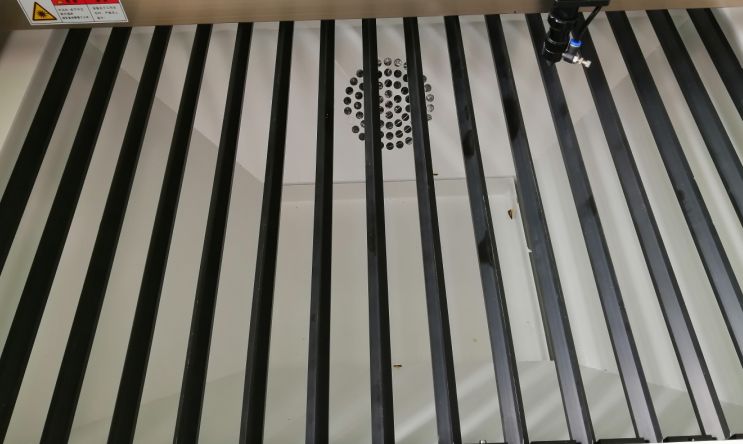

7) Blade table |

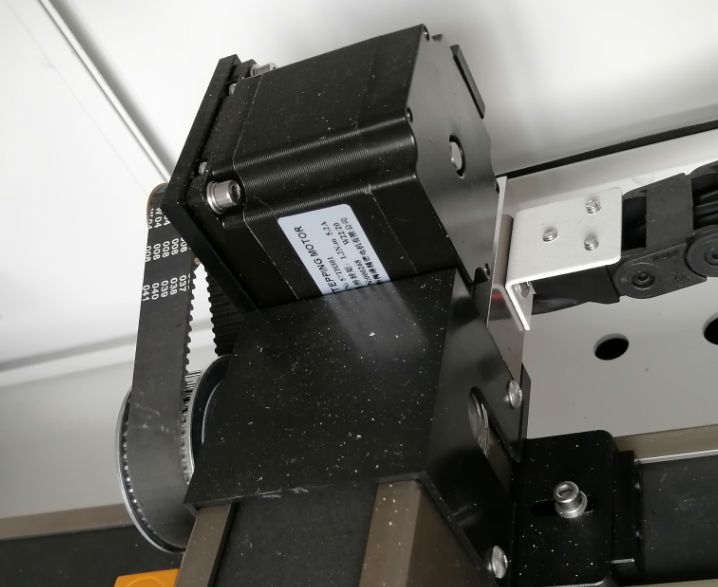

| 8)High accuracy drivers and stepper motors |  |
 |
9)high powerful laser source |

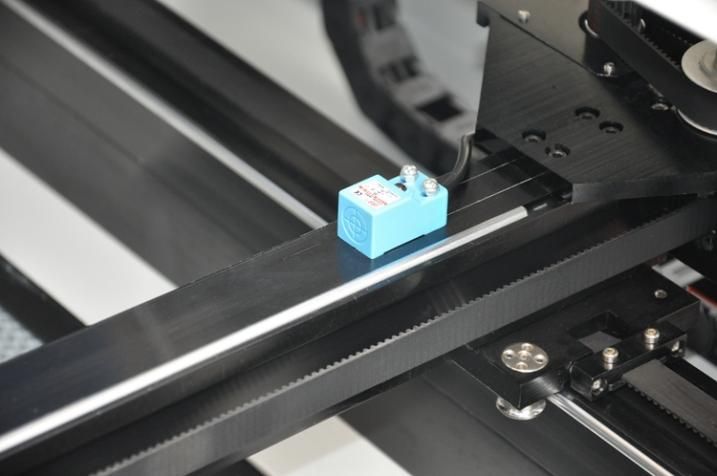

| 10)high accuracy Linear guide rail |  |
 |

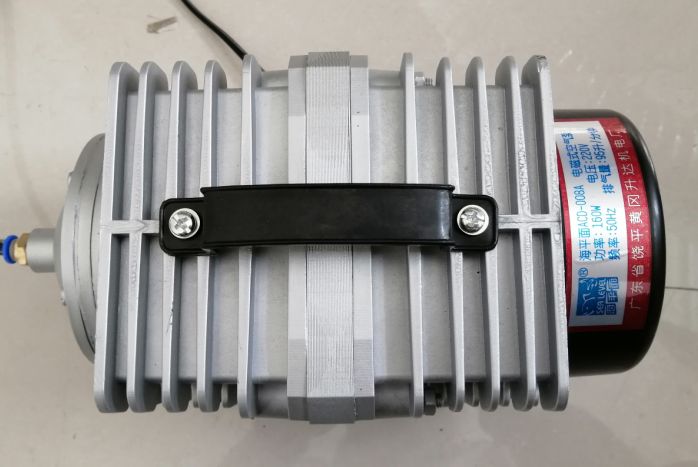

11) Air pump |

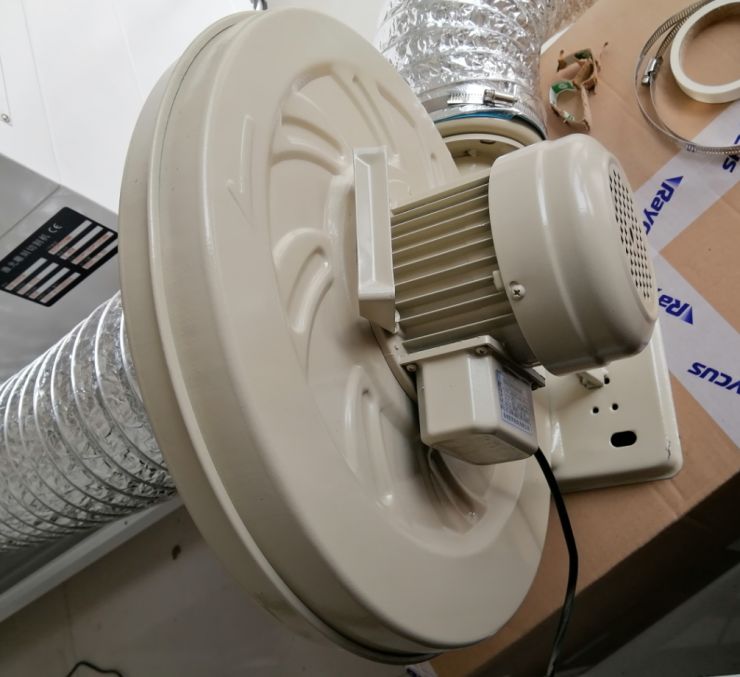

| 12)550W exhaust fan, removes smoke and dust, protects optical parts and the users |  |
 |

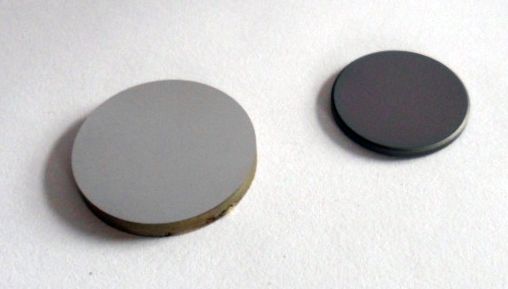

13)Imported lens and mirrors |

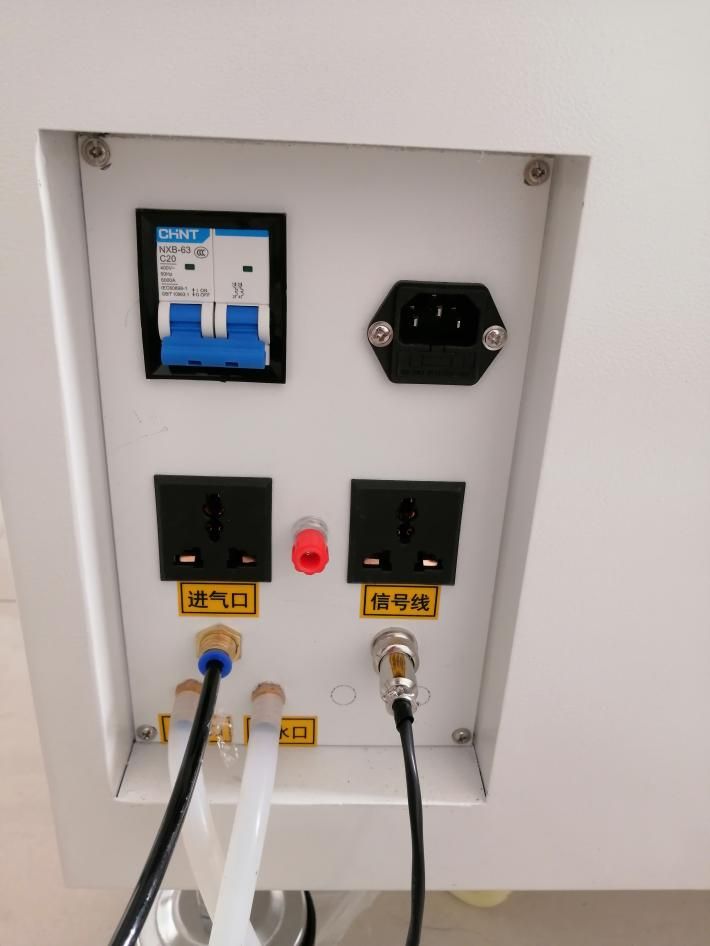

| 14)out side plug and power switch |  |
 |

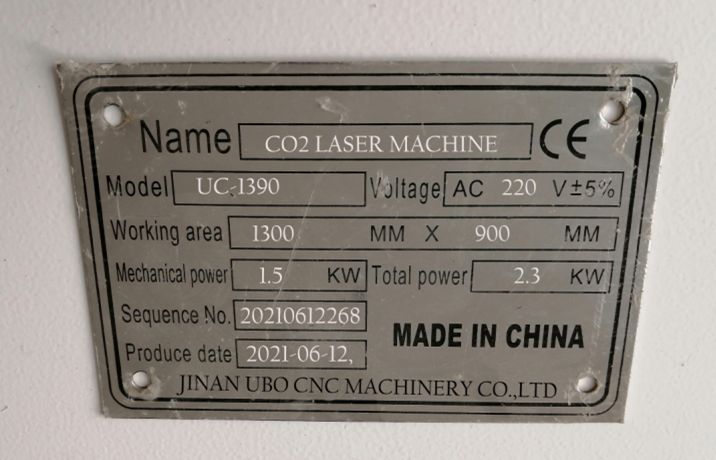

15)Name plate |

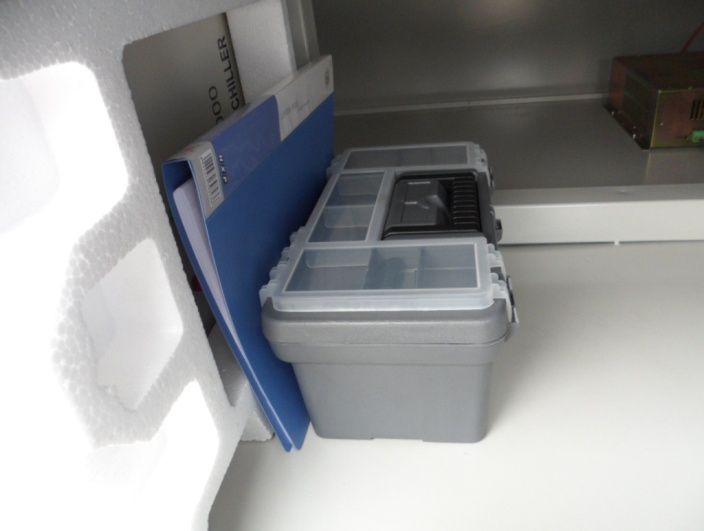

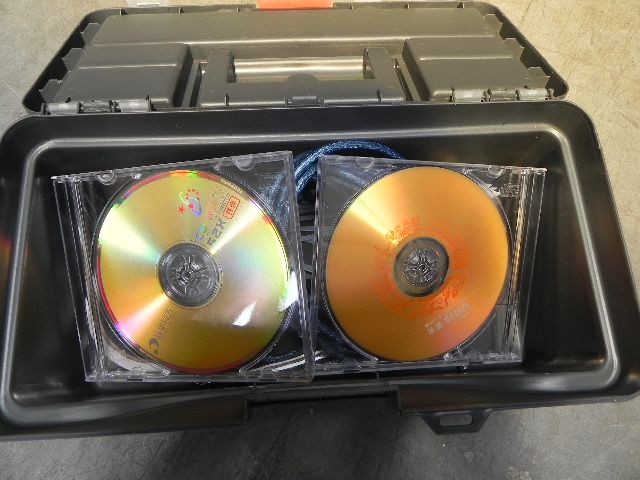

| 12) Tool box | |
  |
|
| Optional : | |
  |
|
For fiber laser marking machine, if with standard device, its ready to ship.
Other kind of cnc wood machine and laser
machines delivery time is about 20-30 days according to quantity and special device request
We provide 3 years warranty for Fiber Laser Machine,Provide 1 year warranty for Other cnc and laser machine such as wood cnc router, stone cnc router, foam cutting machine, flatbed cutter etc.
WE have operation and installation video for woodworking machine, metal fiber laser marking machine, foam machine, stone machine,co2 laser cutting machine etc. WE provide 24 online support for software operation, problem setting etc.
for small machines such as fiber laser marking machine, handheld laser welding machine, 3030 desktop cnc router, we can ship it through air, only take 5-7 days to arrive customer's place. For big machines such as fiber laser cutting machine, flatbed cutting machine, hot wire foam cutter, atc cnc router, we will use sea transportation.
For LCL shipment based on buy 1 set or 2 set, we will use fumigation-free plywood case. For mass purchase such as 6-20 sets panel saw, 6-9 sets 1325 cnc router,we will use film pearl cotton package, and ship by 40'HQ container.
