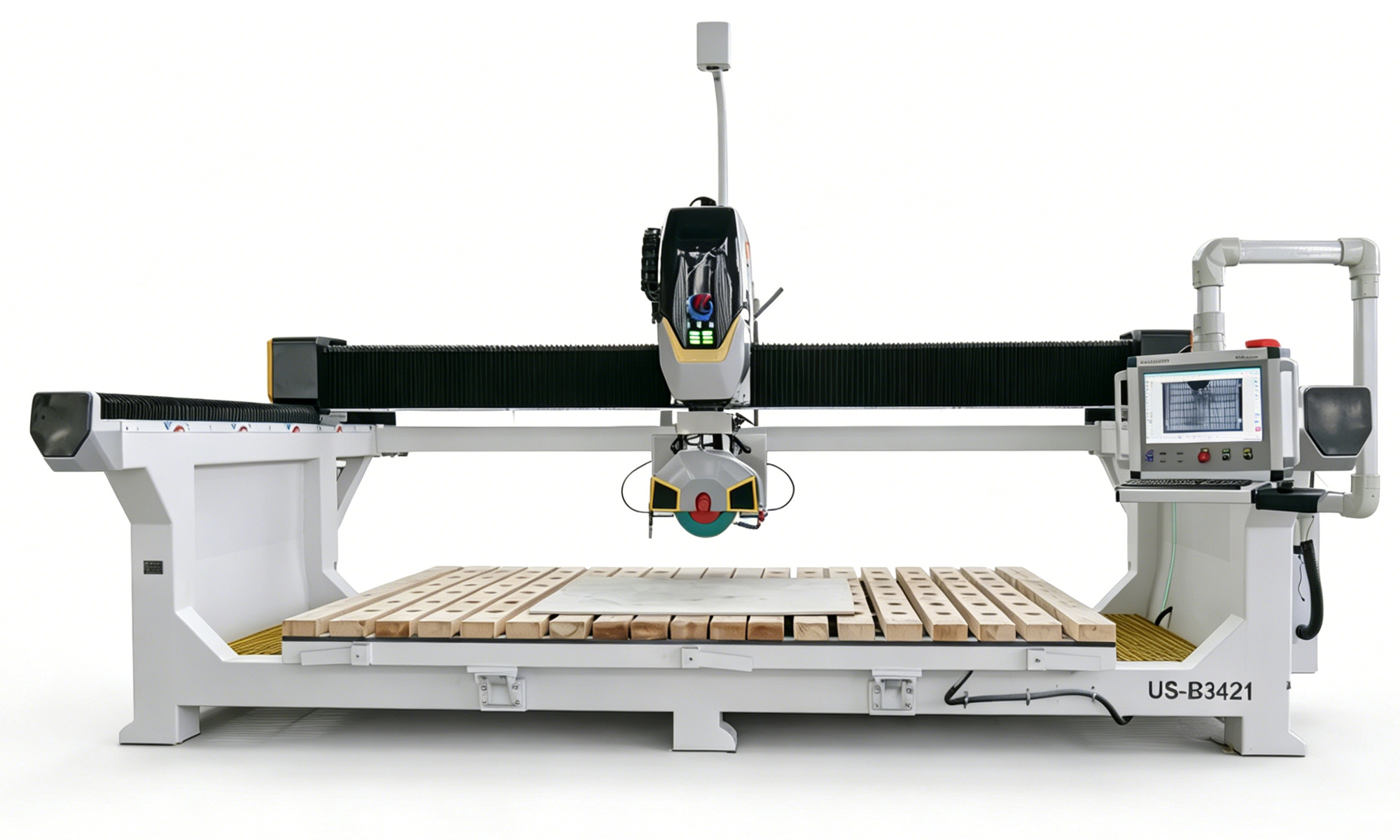

Quartz /Marble/Granite/ceramic stone cnc bridge cutter saw cutting machine
II. MACHINE FEATURE:
1.Powerful 22kw spindle,high precision,long life time,steady working,easy to start up.
2.huge thickness square pipe structure ,well welded, no distortion for whole structure high precision ,and long life time.
3.4axis controller system with USB interface,working without connecting with computer during working and easy to control.
4.all axis with dustproof design and automatic oiling system.
5. Adopt high speed powerful servo motor and drivers,and two motors for Y axis.max speed is 55mm/min.

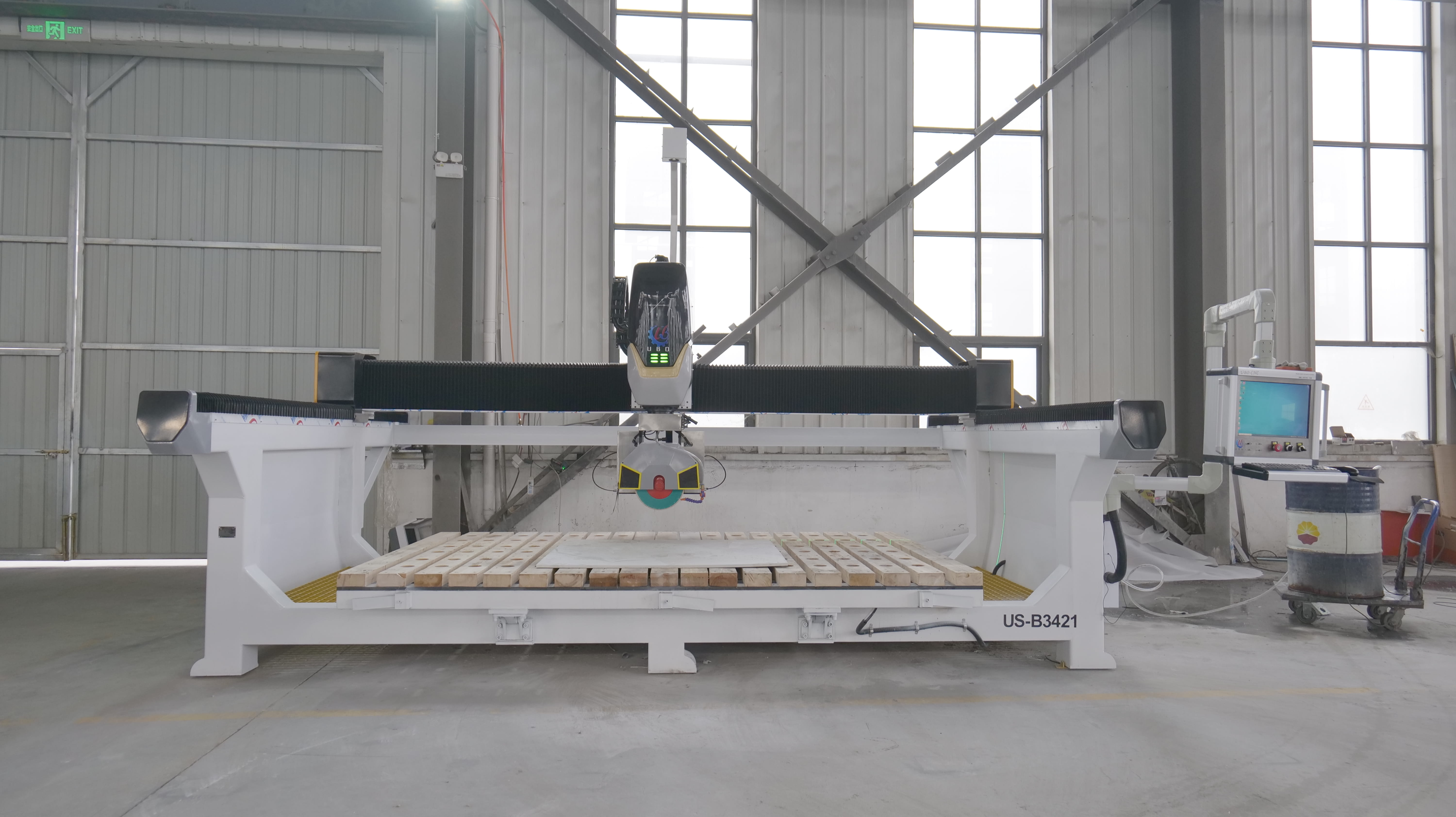

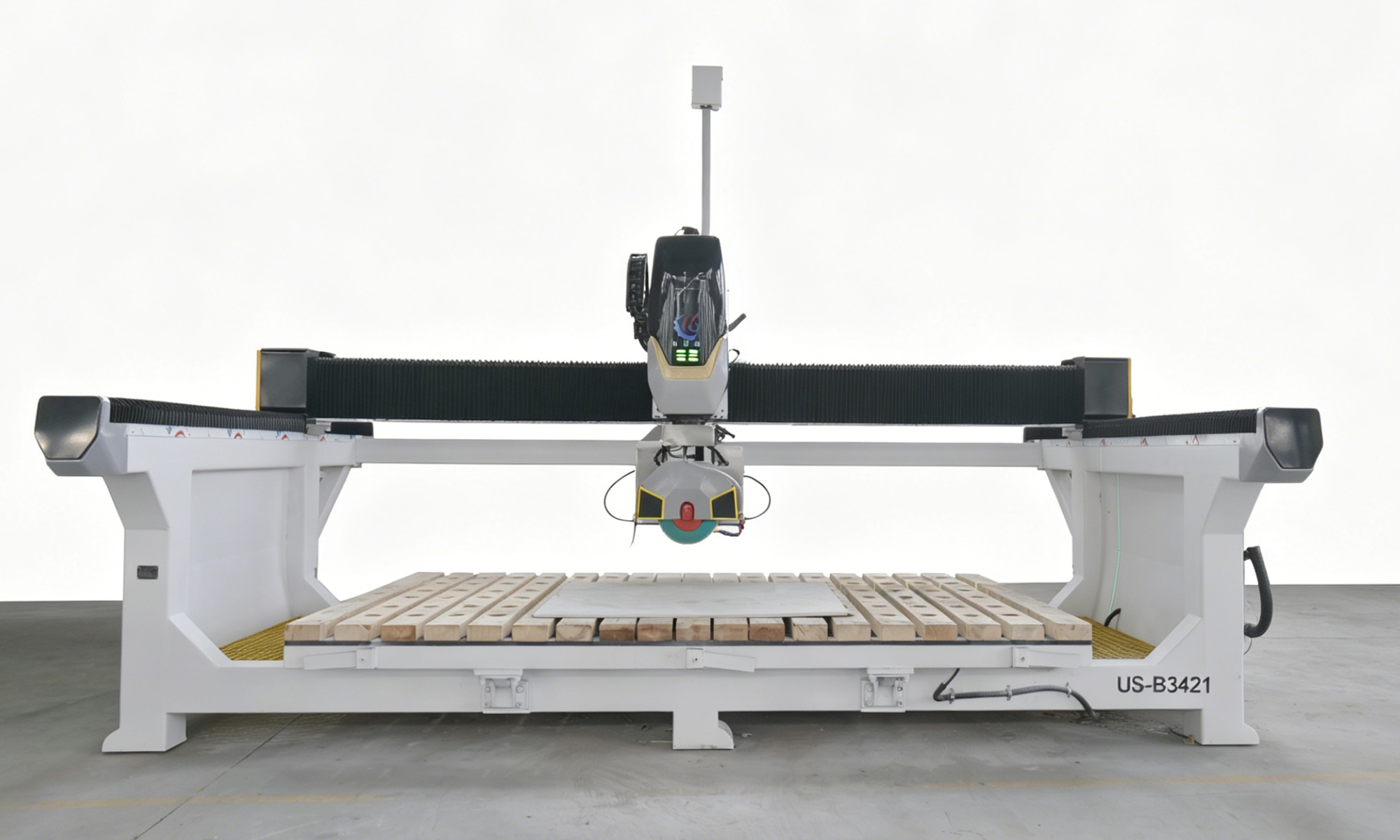

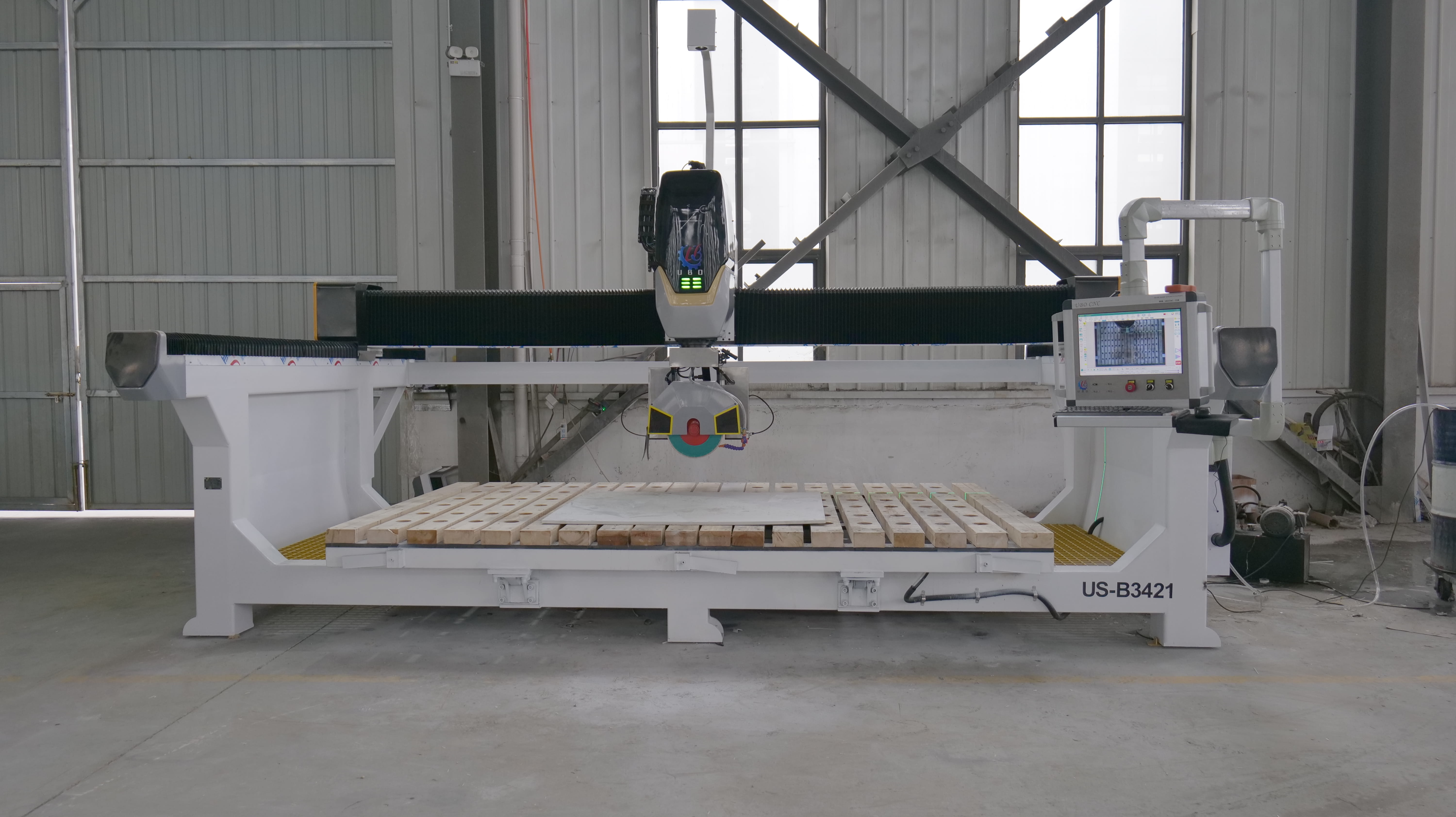

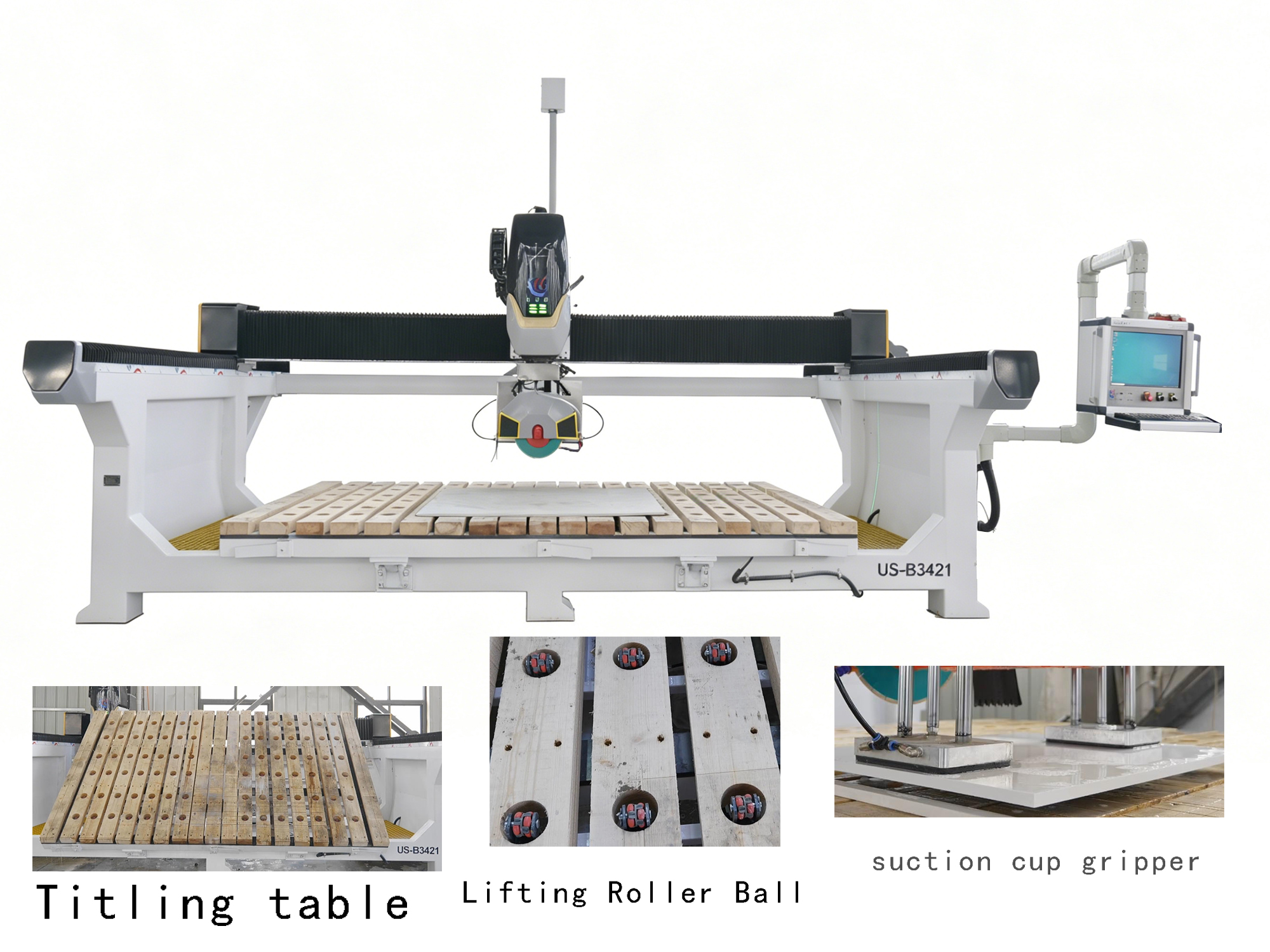

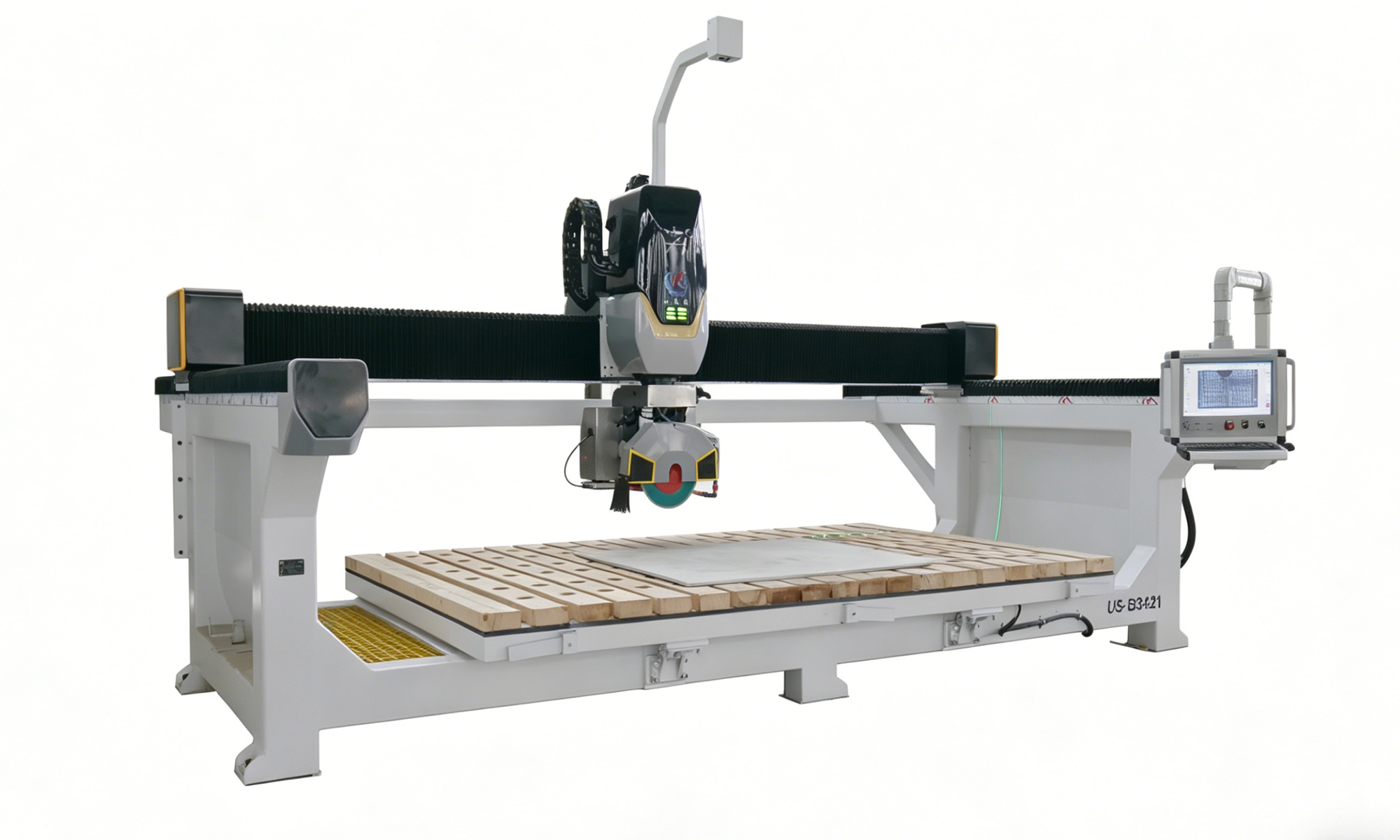

6.tilting table max in 87degree ,can help loading the stone easily.
III. MACHINE PARAMETERS:
Items | Standard | |
Model No. | US-B3421 | |
Machine body | Thickness tube welding structure | |
Working area(mm) | X | 3400 |
Y | 2100 | |
Z | 900 | |
Structure | Table size | 2250*4200 |
table | Wood surface table | |
Transmission system | X | Taiwan HIWIN square guide rail ,WHM Rack driving |
Y | Taiwan HIWIN square guide rail ,WHM Rack driving | |
Z | Taiwan HIWIN square guide rail ,TWHM Rack driving | |
Spindle | Power | Powerful 22kw |
Rotating Speed | 2800rpm | |
Cooling Type | air- cooling | |
Collet diameter | ||
B Axis Rotation | Auto 0-45 degree chamfer （automatic） | |
A Axis Stroke | 360 Rotation （automatic） | |
X Axis Cutting Speed | 1-8000mm/min | |
Y Axis Cutting Speed | 1-8000mm/min | |
Z Axis Cutting Speed | 1-1000mm/min | |
A Axis Rotating Speed | 0-7r/min | |
Cutting Thickness | Max 150mm | |
About drive systems | X | Leadshine 1500W servo motor and driver+Shimpo reducer |
Y | Double Leadshine 1500W servo motor and driver+Shimpo reducer | |
Z | Leadshine 1500W servo motor and driver+Shimpo reducer | |
Control System | 4axis Control system | |
Data reading mode | line by line | |
Compatible file format | G code /PLT/DXF/ENG | |
Working Voltage | 3 phase AC380V/50/60Hz, | |
Precision | 0.1mm | |
speed | 0-80000mm/min | |
XYZ Positioning Accuracy (MM) | <0.1 | |
Repetitive Positioning Accuracy(MM) | <0.1 | |
Gantry made of | Thickness Steel tube 10mm | |
oil-inject lubrication system | Auto Oil system | |
Power off memory | Function of re-carving after break point and power failure | |
Maintenence tools | Tool BoxAvailable | |
Maintenance | Service can be supplied on line | |
Guarantee / Warranty | 36 MONTHS | |
Tech Support | Available | - Online / Phone |
Damaged / Spoil spare part support | Available | |
Dimension | 5700*3350*2600mm | |
Delivery Time | 15-20 WORKING DAYS | |
