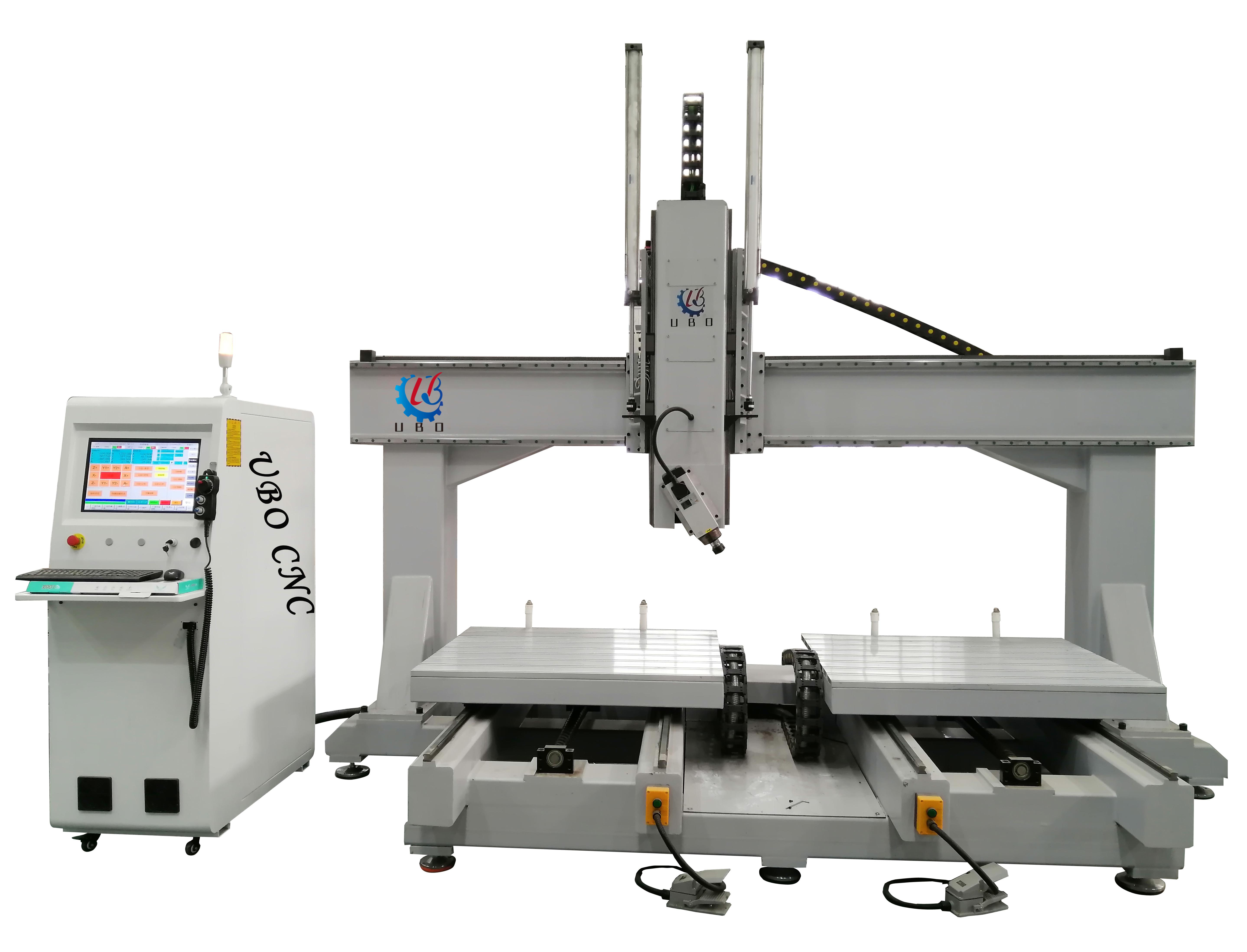

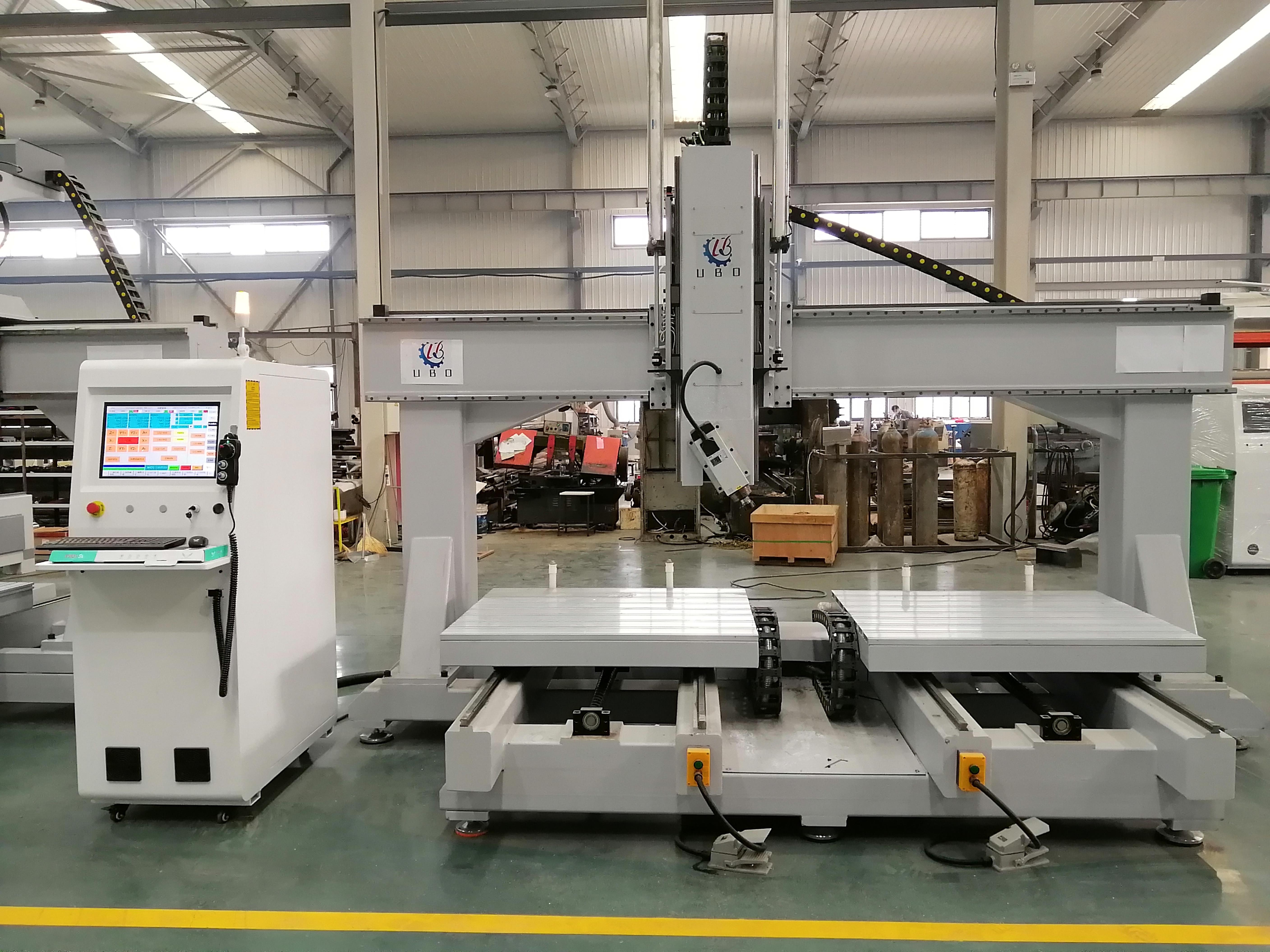

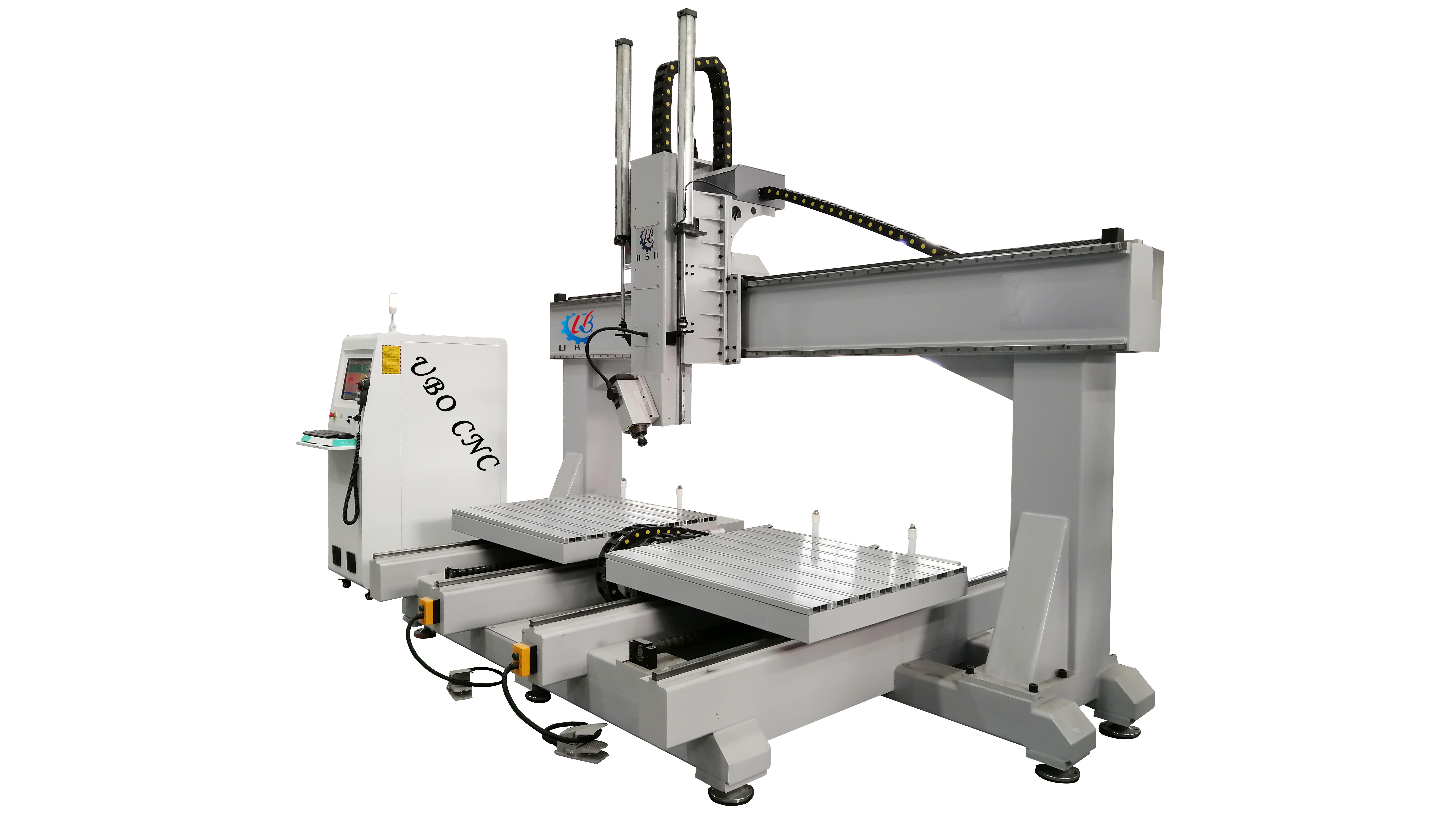

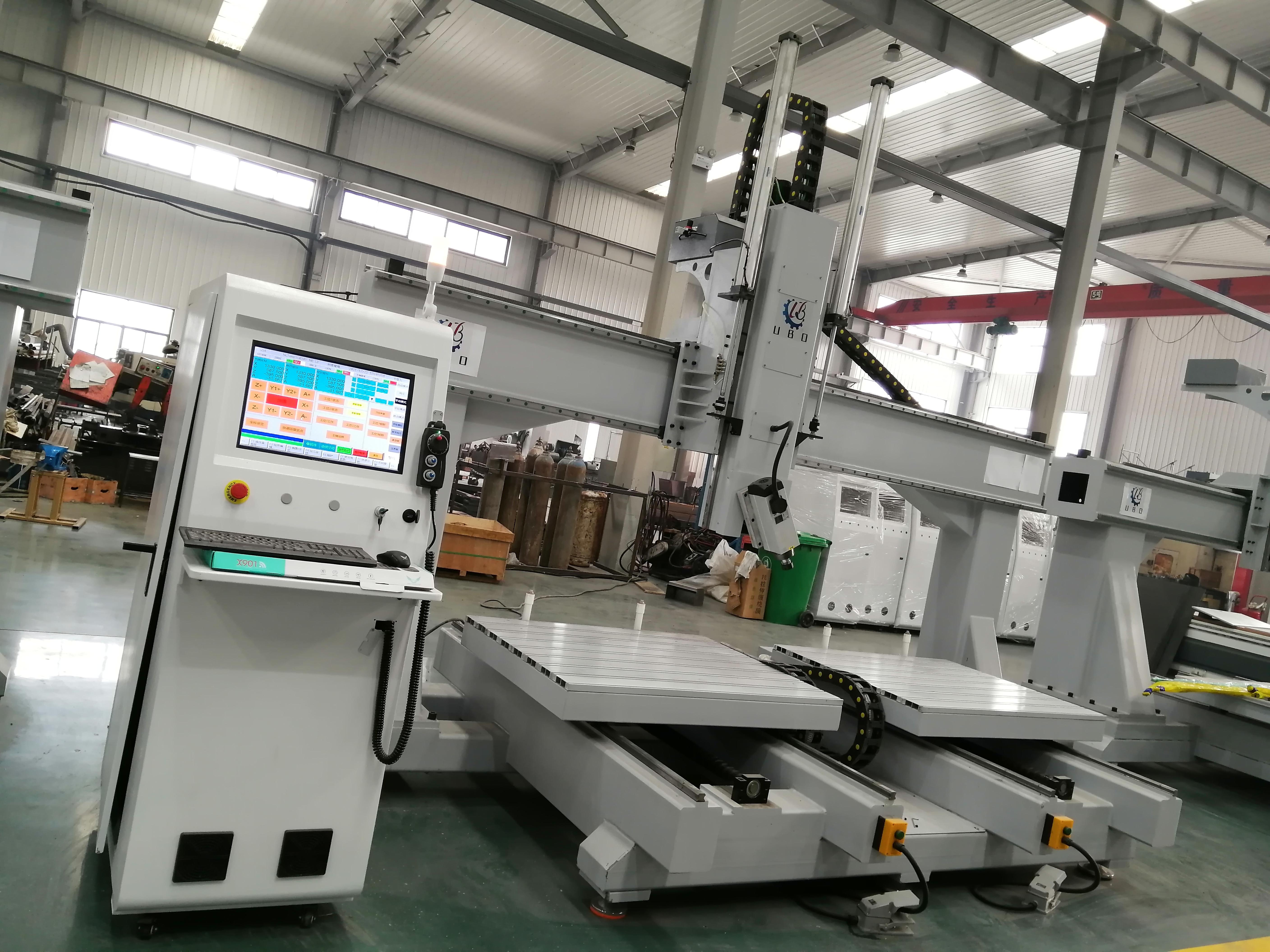

UW-A1212-24A Series 4axis ATC CNC ATC is a great machine with totally five axis. Heavy duty body structure with double table moving ,much more stable. Routing is driven by Syntec industrial CNC controller with an easy to use system interface. You can processing on sample ,then fixed the materials on another table ,so that save time to improve the efficient.
1) The machines’body is strong, rigid, high precision, reliable and durable.
2) Imported high precision ball screw, smooth movement, to ensure that the machine tools high-precision.
3) High quality imported linear guide HIWIN/PMI has much longer life 10 times of life-time than round guide; It is stable and hard to distort.
4) double moving table, more table and high efficient working.
5) High performance driven motor to ensure that the machines high speed and accuracy.
6) The Syntec control system is a very popular control system with high quality.
7) Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
Wood furniture industry:
Doors, Cabinets, Tables, Chairs, Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards, and so on.
Advertising industry:
Signage, Logo, Badges, Display board, Meeting signboard, Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Application Industry:
Mold industry: various large metalloid mould, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.
Instrument industry: 3-d surface engraving and shape cutting of large-scale instruments.
Others:
Relief sculpture and 3D engraving and cylindrical object.
item | value |
Model | UW-A1212-24A |
Range of Spindle Speed(r.p.m) | 1rpm - 24000rpm |
Positioning Accuracy (mm) | 0.01mm |
No. of Spindles | Single |
Working Table Size(mm) | 1200*1200 *2sets |
Machine Type | CNC |
Repeatability (X/Y/Z) (mm) | 0.03mm |
Certification | CE |
Key Selling Points | Easy to Operate |
Marketing Type | Hot Product 2021 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Speed | Max travelling speed : 40000mm/min Max working speed : 20000mm/min |
Color | Customer Needing |
Spindle | HQD/HSD/ Italy Hiteco 5axis spindle |
Control system | Syntec controller |
X, Y transmission | Germany WMH HERION Rack and gear |
Z transmission | Taiwan TBI Ballscrew |
Driving Syestm | Syntec |
XYAC axis | Syntec YASKAWA servo motor |
Inverter | Fuling |
Reducer | Japan Shimpo reducer |
Motion positioning accuracy | ±0.05mm |
Repeated positioning accuracy | ±0.02mm |
Weight | 3000kg |
All the working area and specifications can be customized according to requests.

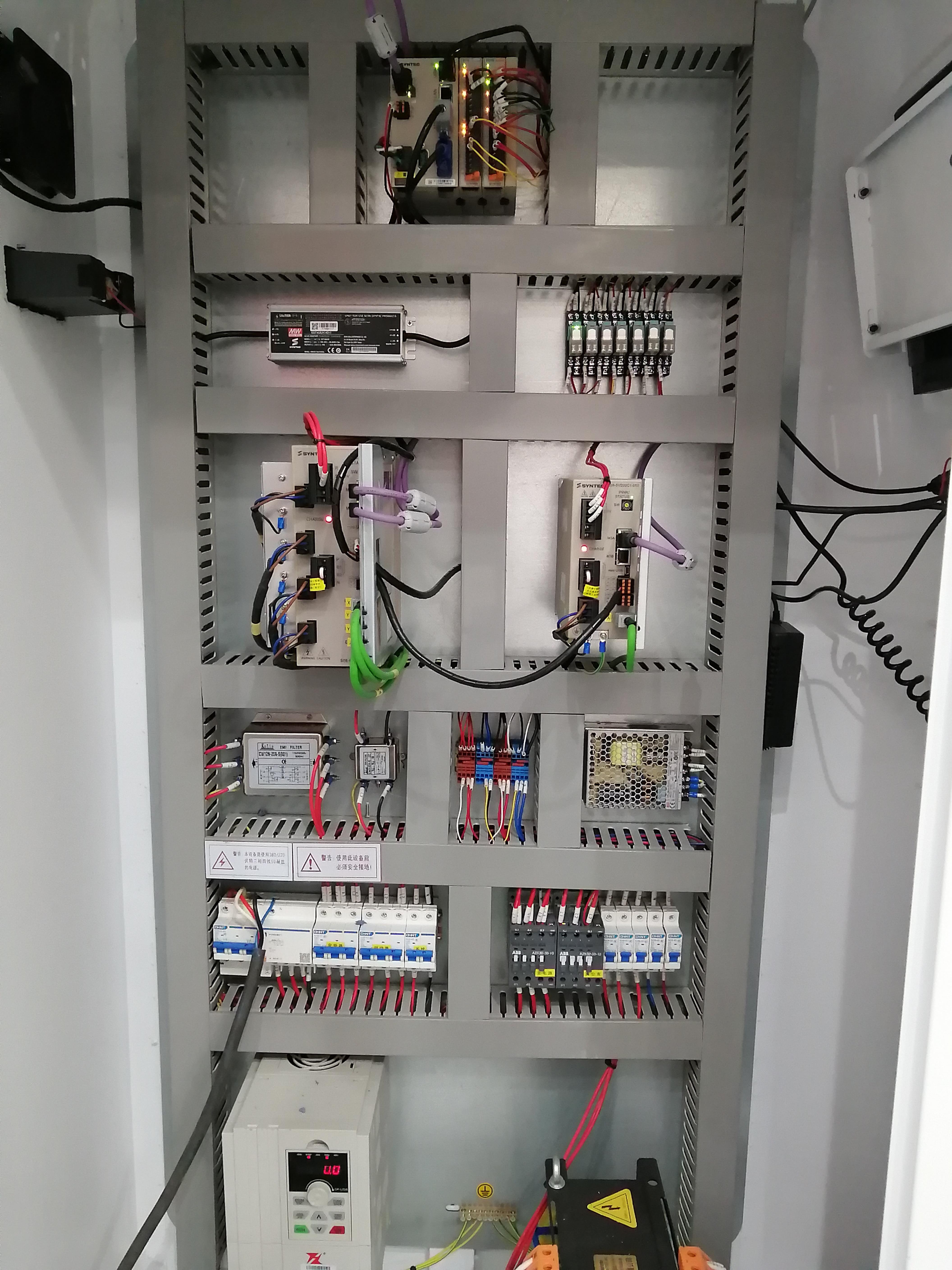

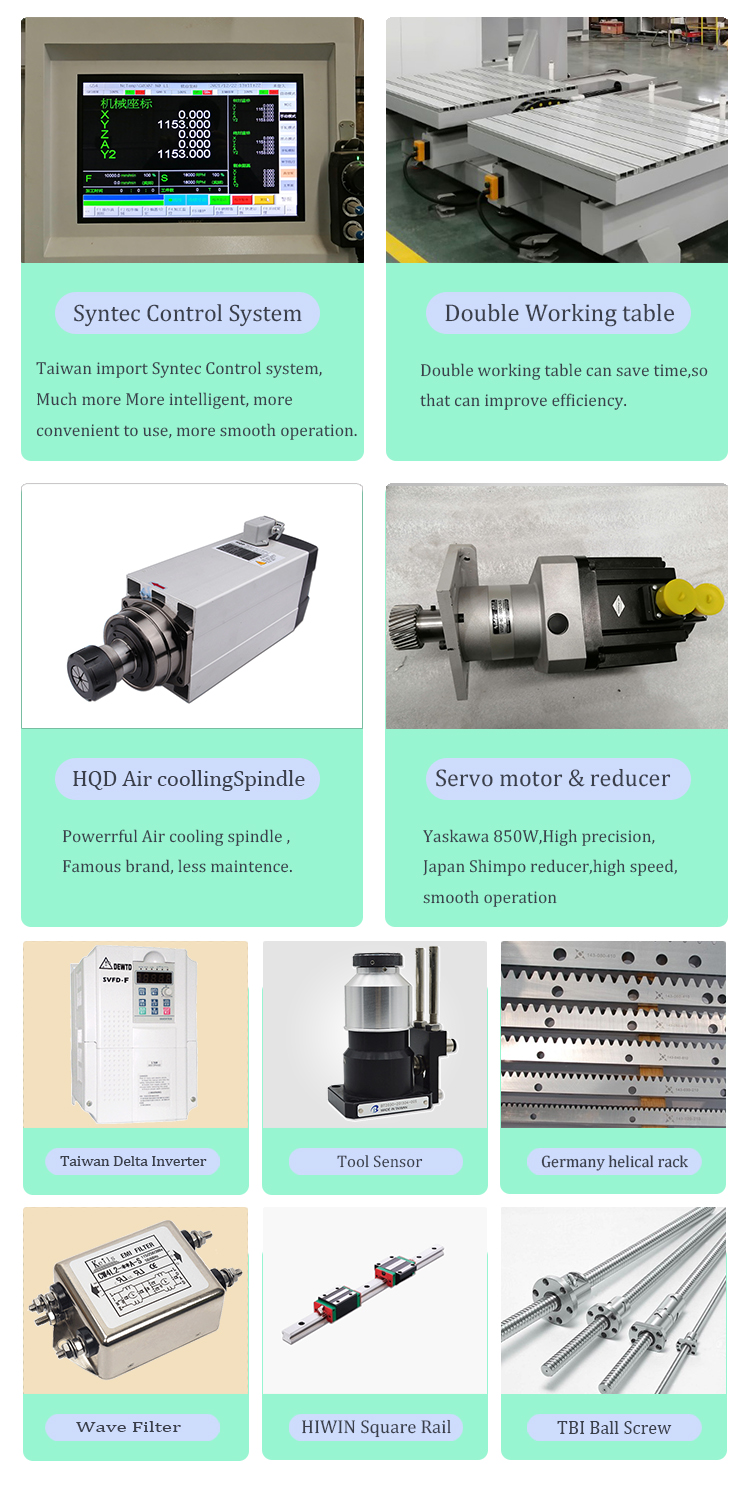

Main parts:
