wood cnc ATC engraving cutting router machine

share
WeChat
QQ
copy Link
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
$9500.00
$0.00
Series Machinery
Material Wood/Foam/Plastic etc
Brand UBOCNC
Model UW-A1325L
Consult immediately
Reservation Now
Detail

Product Description

Feature Of Machine
1.Stable Structure: the overall steel structure welded, the vibration (tempering) aging treatment, long-term use of no deformation.
2.Machine adopts Taiwan SYNTEC/LNC control system,high-performance industrial control system ,which has the excellent and stable quality, good maintenance and can control to process the completion of the multi-level 3D sculpture,with fast and smooth three-dimensional processing, carving and cutting.
3.The linear guide rail adopts Taiwan Hiwin 25mm linear square orbit, double row and four ball slider, loading capacity, smooth running, keeping high accuracy.
4.The machine worktable adopts the international leader vacuum technology, surface density, deformation, high adsorption capacity,which can strongly absorb different materials, convenient maintenance.   automatic lubrication, only need to hand gently press can achieve the whole machine maintenance.
5.The software compatibility: compatible type3/castmate/artcam/ Wentai/Mastercame and other design software.
Specification
Model:
UW-A1325L
Working Area:
1300*2500*200mm
Spindle Type:
air cooling spindle
Spindle Power:
9.0KW Chinese ATC
Spindle Rotating Speed:
0-24000rpm
Power (except spindle power):
5.8KW
Power Supply:
AC380/220v±10, 50 HZ
Worktable:
Vacuum Table and T-slot
Driving Syestm:
Japanses Yaskawa servo motors and drivers
Transmission:
X,Y :Gear rack, high accuracy square guide rail,
Z: ball screw TBI and hiwin square guide rail
Locating precision:
<0.01mm
Min Shaping Character:
Character:2x2mm,letter:1x1mm
Operating Temperature:
5°C-40°C
Working Humidity:
30%-75%
Working Precision:
±0.03mm
System Resolution:
±0.001mm
Control Configuration:
Mach3
Compatible Software:
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares….
Data Transfer Interface:
USB
System Environment:
Windows 7/8/10
Spindle Cooling Way:
Water cooling by water chiller
Limited Switch:
High sensitivity limited switches
Graphic Format Supported:
G code: *.u00, * mmg, * plt, *.nc

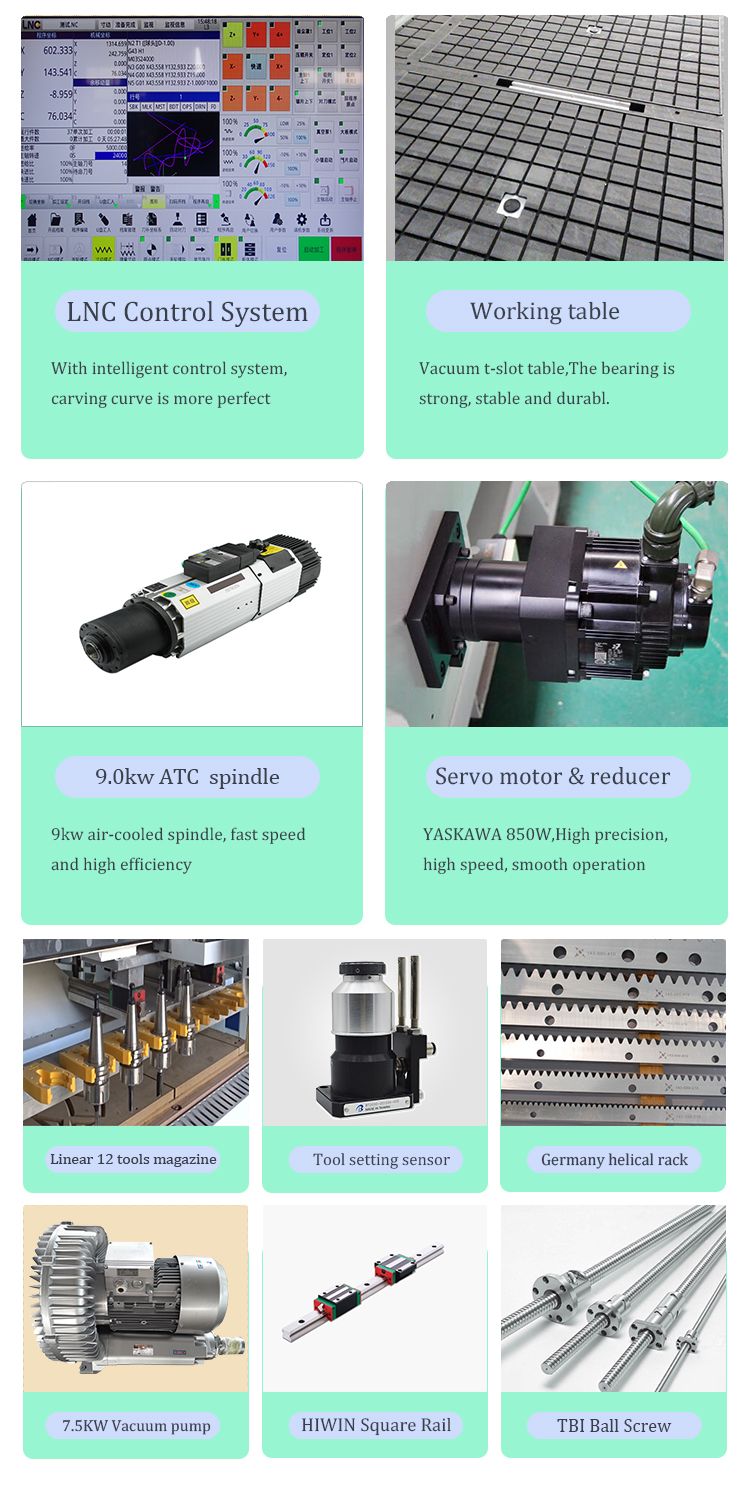

Main Parts

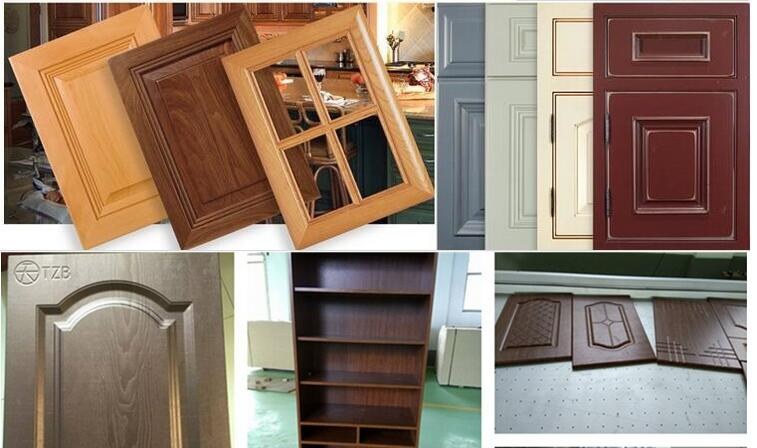

Samples

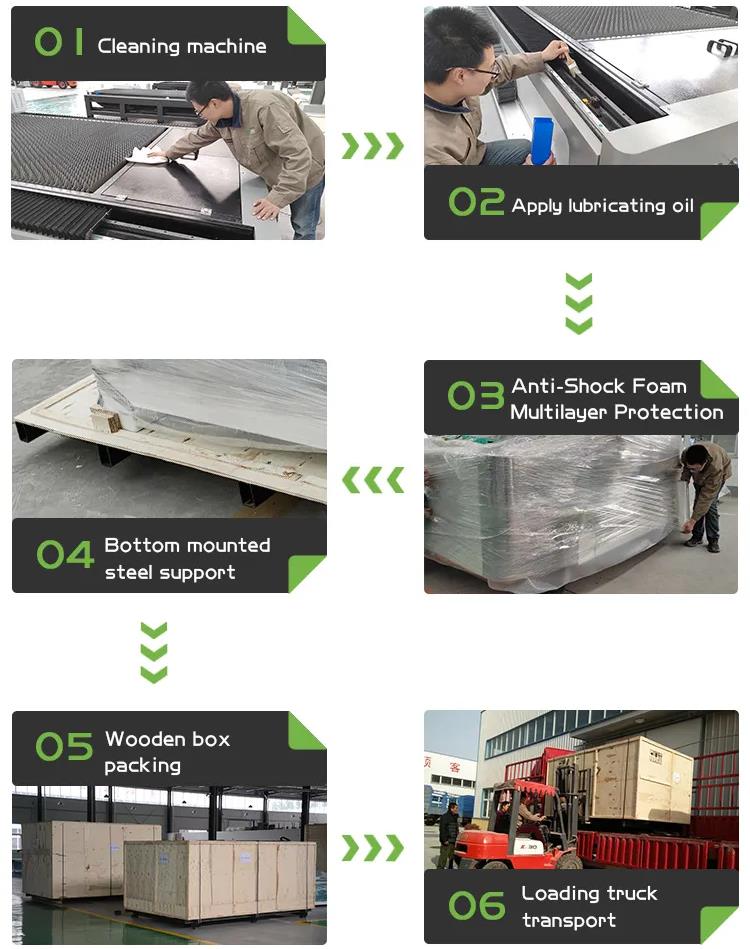

Packaging and delivery

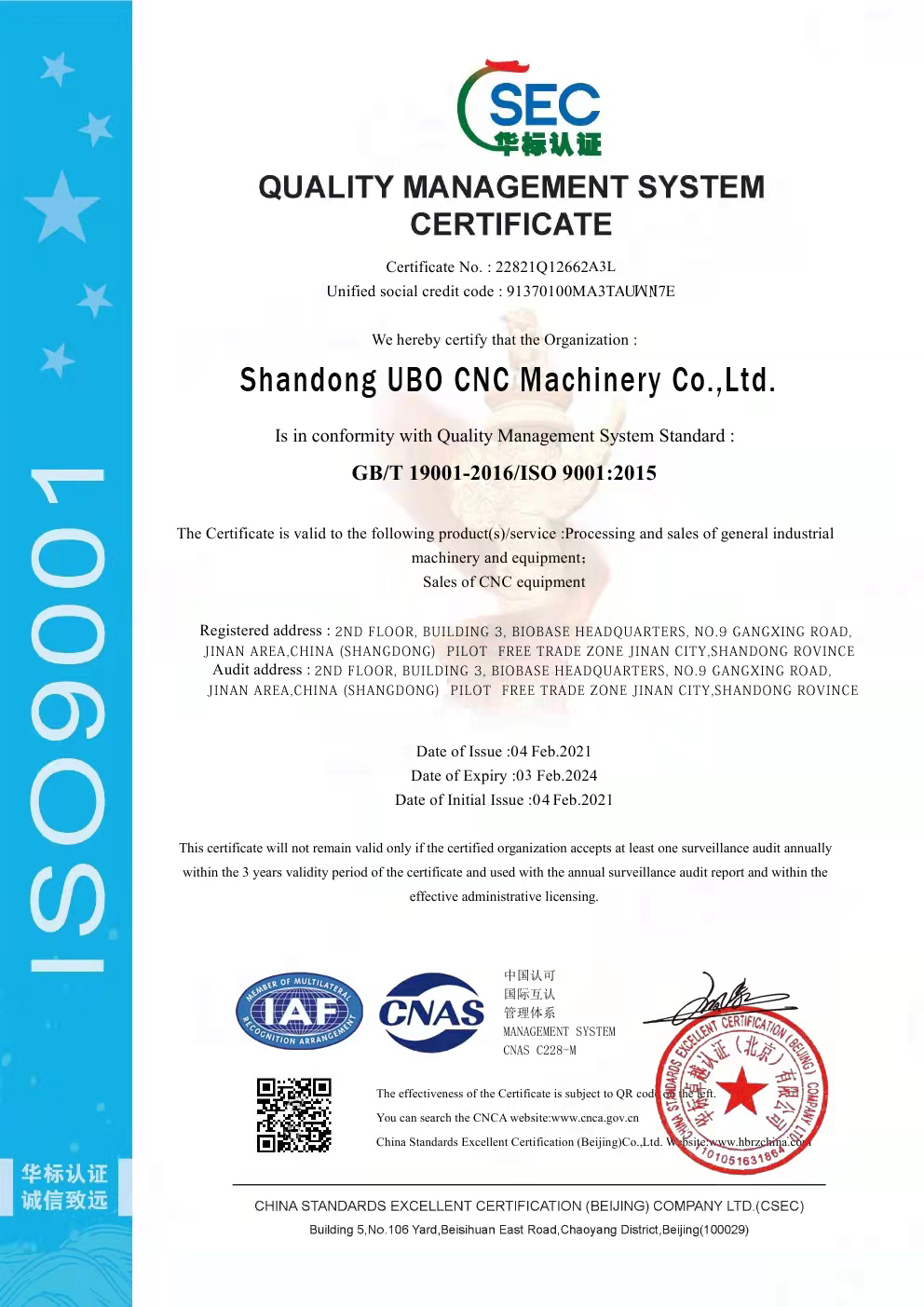

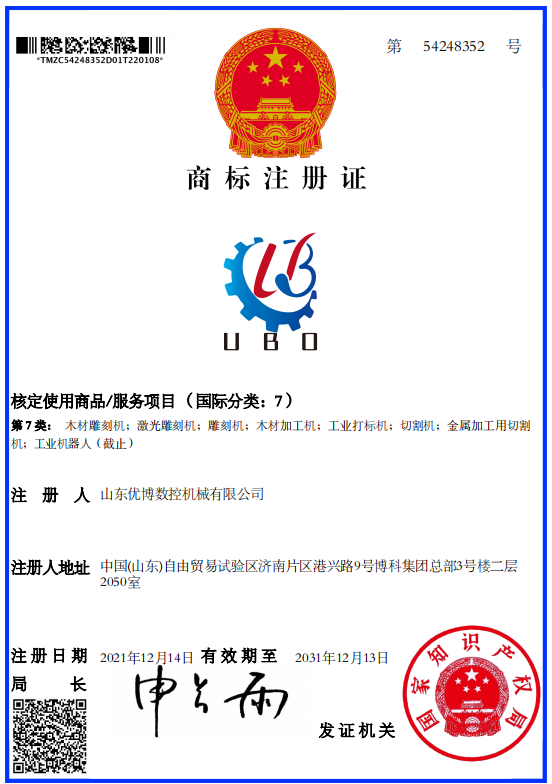

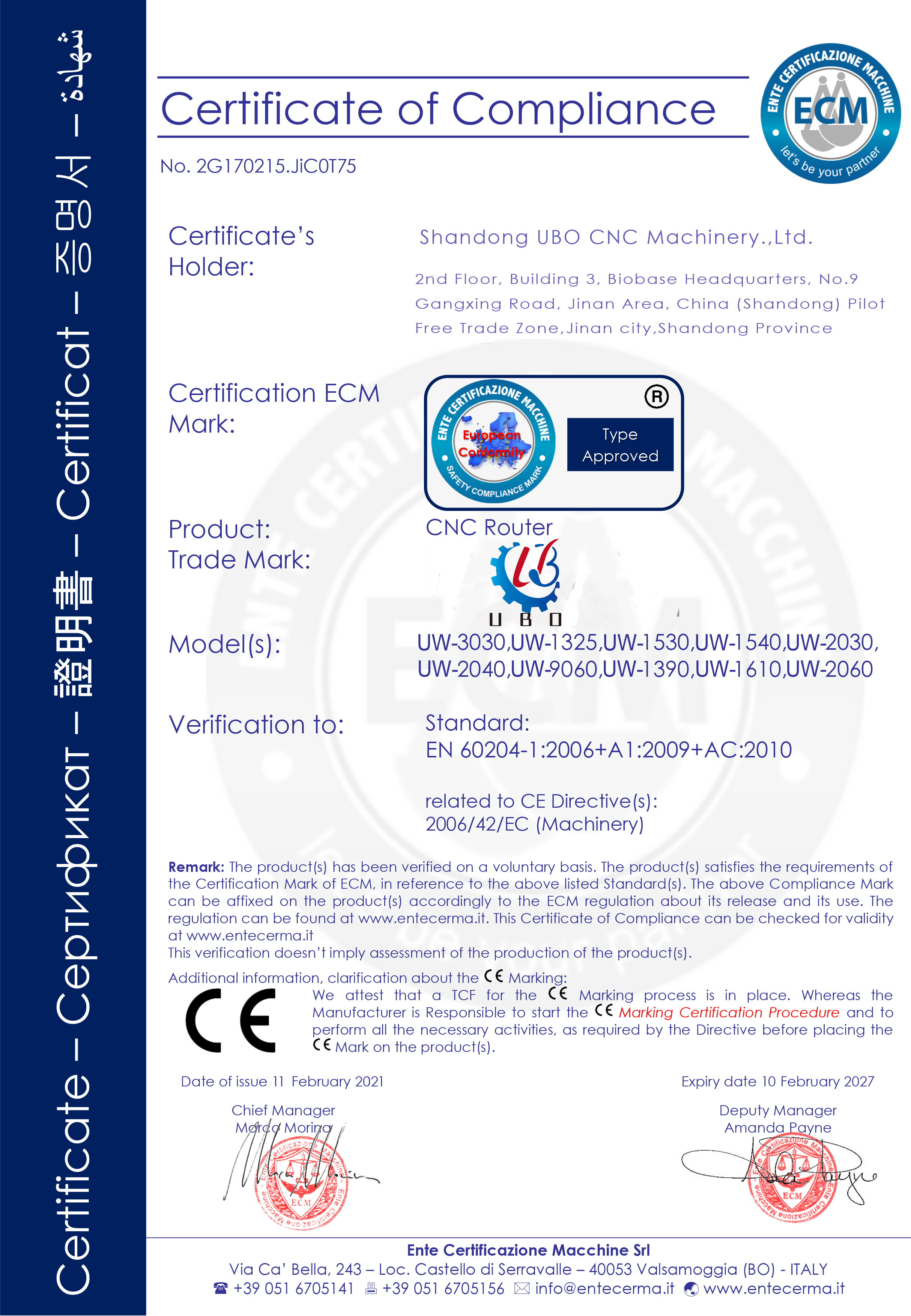

Certification
