Kitchen CNC ATC Milling Machinery
Product Description:
1. thickness welding body structure,Aging quenching treatment effectively prevents deformation of the bed.
2. With advanced Weihong control system and all pattern operation, the machine can be operated without professional operators.
3. Powerful Leadshine servo motor and driver, the machine can work in much more efficient.
4. Special 3axis dust-proof system,protect guides and higher efficiency.
5. The large size of the table is easy to place a plurality of processing stations
6. auto position device for save time to improve the efficient.

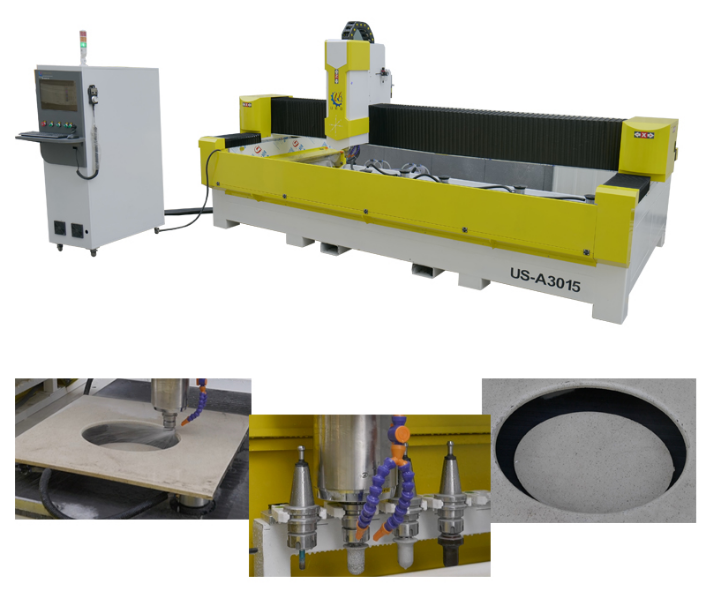

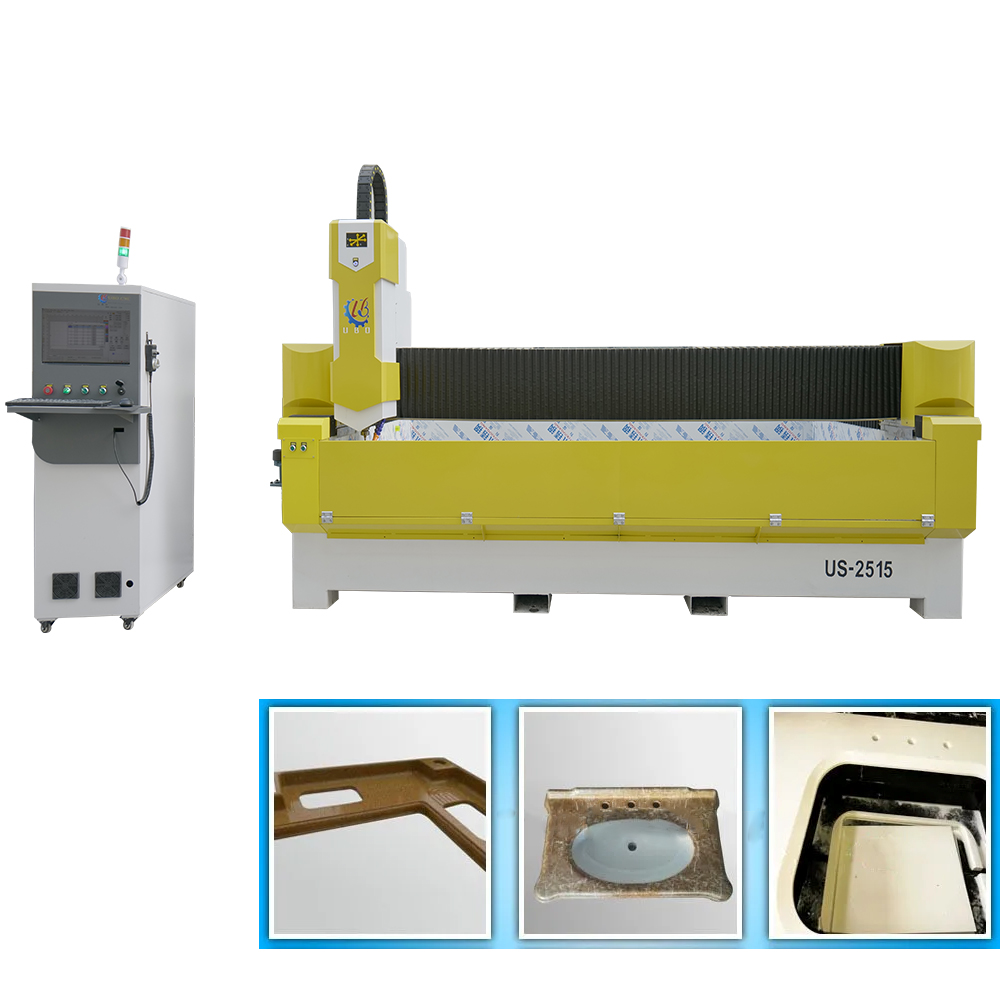

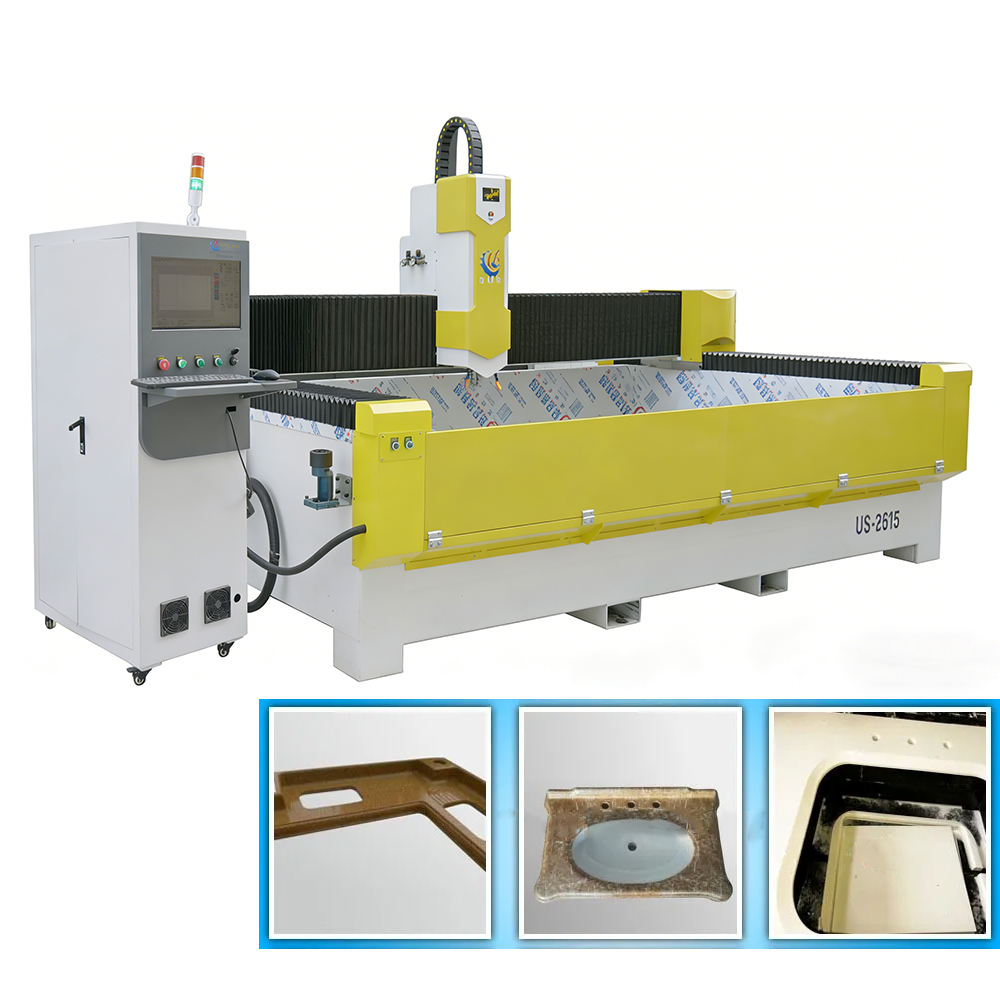

Product picture:
Product specification :
Model | US-A3015 |
X,Y,Z working area | 3000*1500*500 mm |
Lathe Bed | thickness huge tube welding body structure |
Table | HDPE + vacuum block |
XYZ Guide Rail | 30mm HIWIN Square Rail |
X Y Transmission | Imported Rack Gears |
Z Transmission | Imported Ball Screw |
Spindle | Powerful 12kw water cooling ATC Spindle |
Inverter | Quality 12kw Inverter |
Motor | Leadshine 1500W servo motor + Japan Shimpo Reducer |
Drive | Leadshine Servo driver |
Way of fixing Workpiece | Vacuum sucker |
vacuum pump | 7.5kw vacuum pump |
Control system | Weihong control system+ remoter |
Command languages | G code |
Tools magazine | 12 linear tools changer |
Software compatibility | Artcam CAD CAM software |
Working voltage | AC380V/3phase,50HZ |
Weight | 3200KGS |
Color | Customized |
Warranty | 3years,whole life service |
Dimensions | 5150*2750*2100mm |
Machine parts pictures:
 |  |

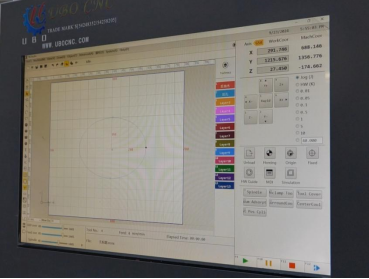

Weihong control system | Powerful ATC spindle |
 |  |

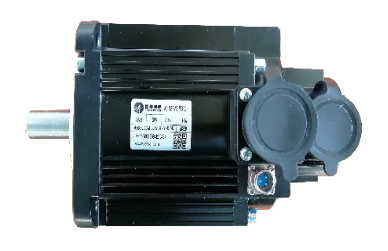

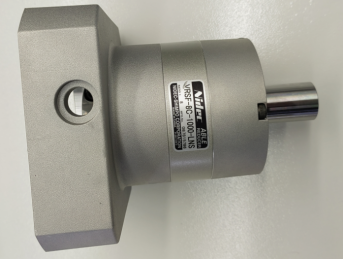

Powerful servo motor | Japan Shimpo reducer |
 |  |

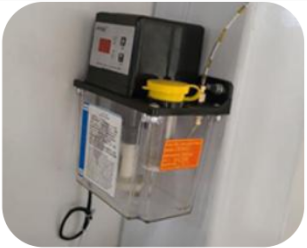

Auto oilling system | Best Inverter |
 |  |

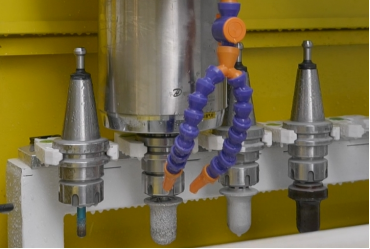

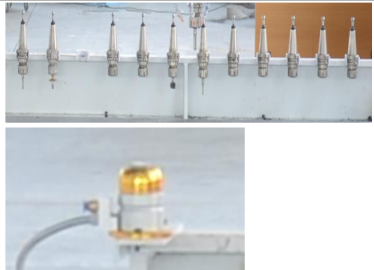

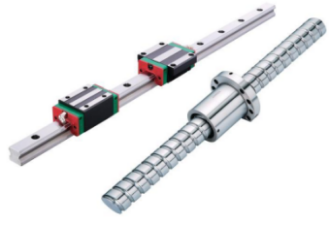

Tools magazine and tool sensor | HIWIN Square guide rail and TBI ball screw |
 |  |

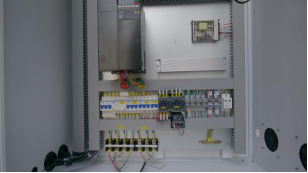

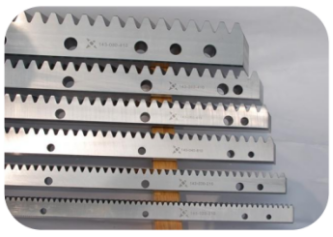

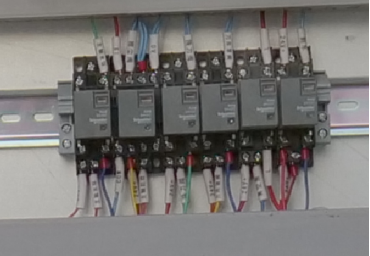

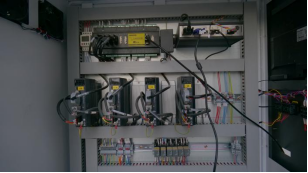

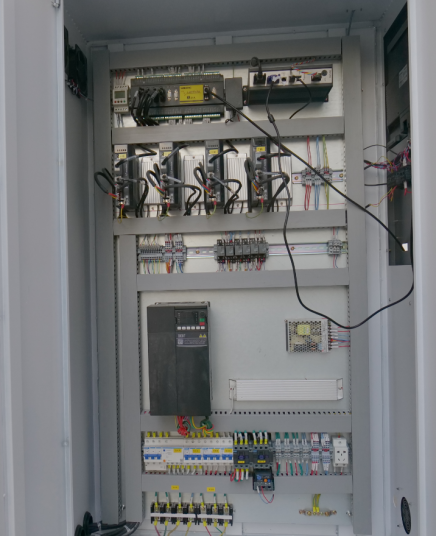

Schneider electric devices | Germany ATLANTA rack pinion |
 |  |
Cooling | Vacuum cup device |
 |  |

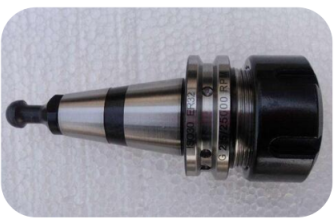

tools | Device for tool |
 |
|

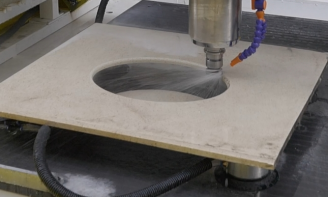

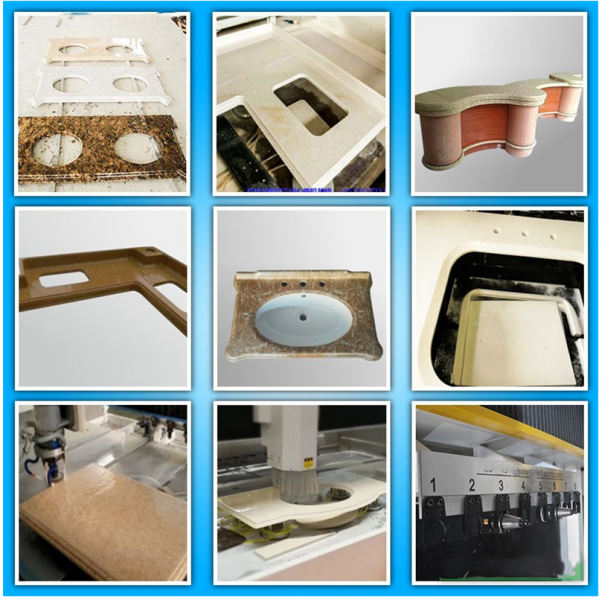

Samples show:
Packing details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 20-30 working days after payment.
Guarantee and After-sale service:
1. 36 months warranty for the machine.
2. Technical support by phone, email or WhatsApp/Skype within 24 hours
3. Friendly teach you how to operate the machine
4. Engineer available to service machinery overseas.

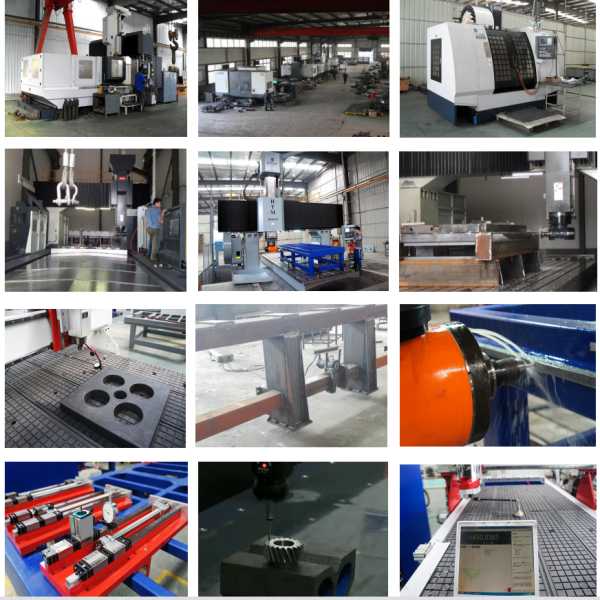

Machining:
