5AXIS WOOD CNC MILLING MACHINE WITH DOUBLE WORKING STATIONS

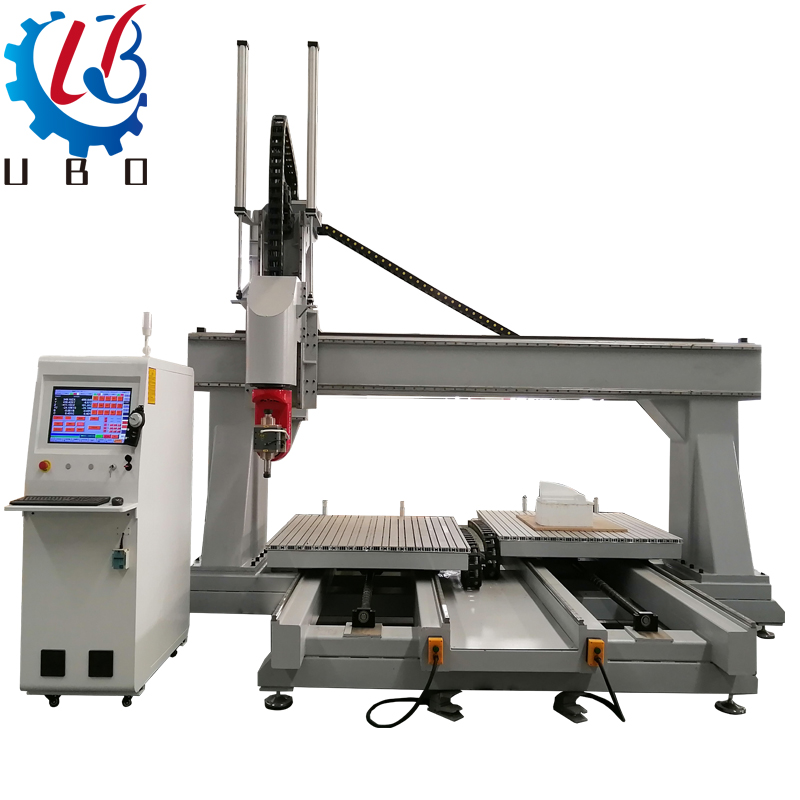

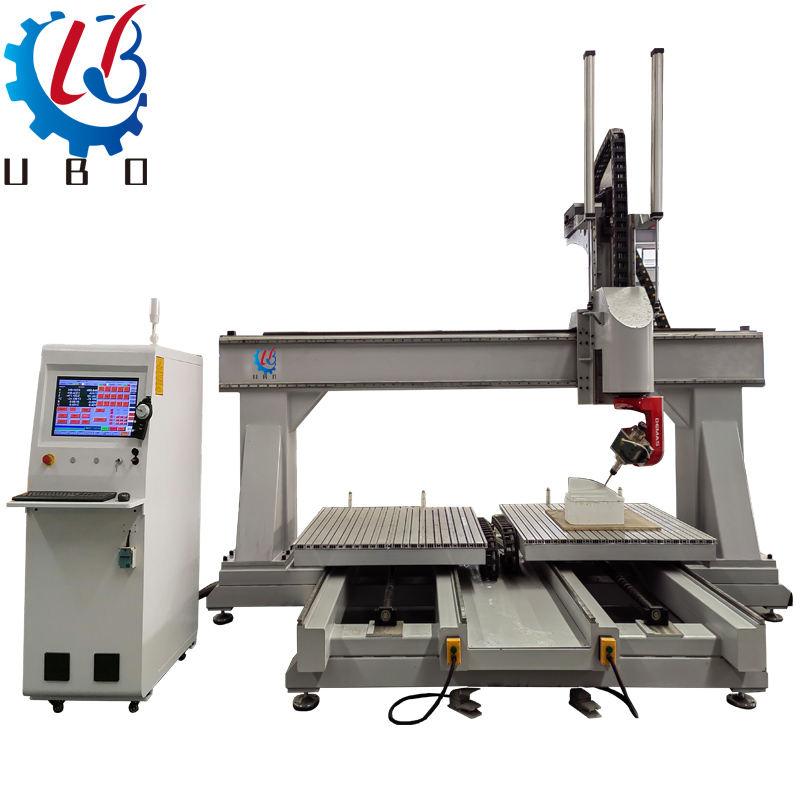

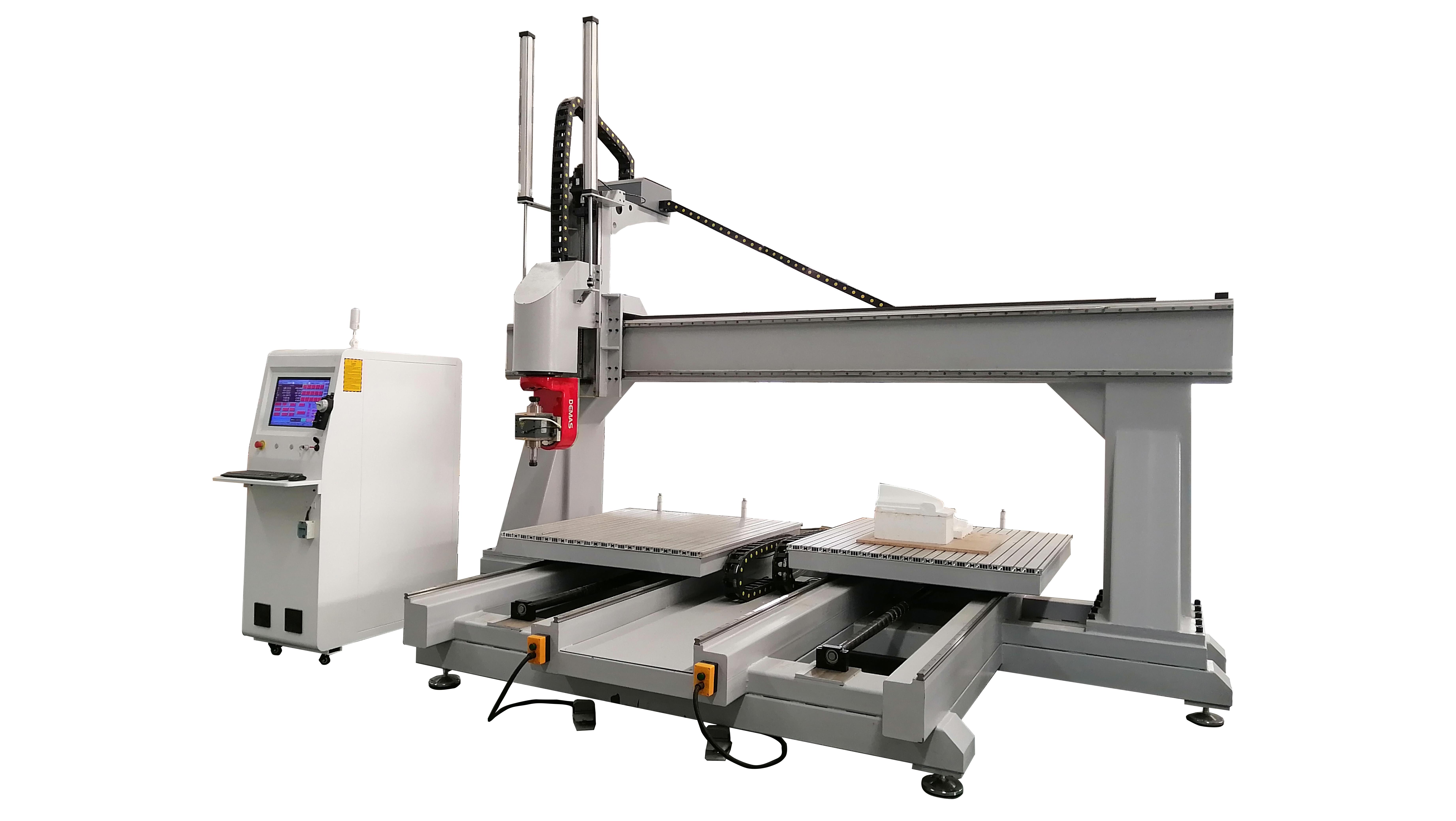

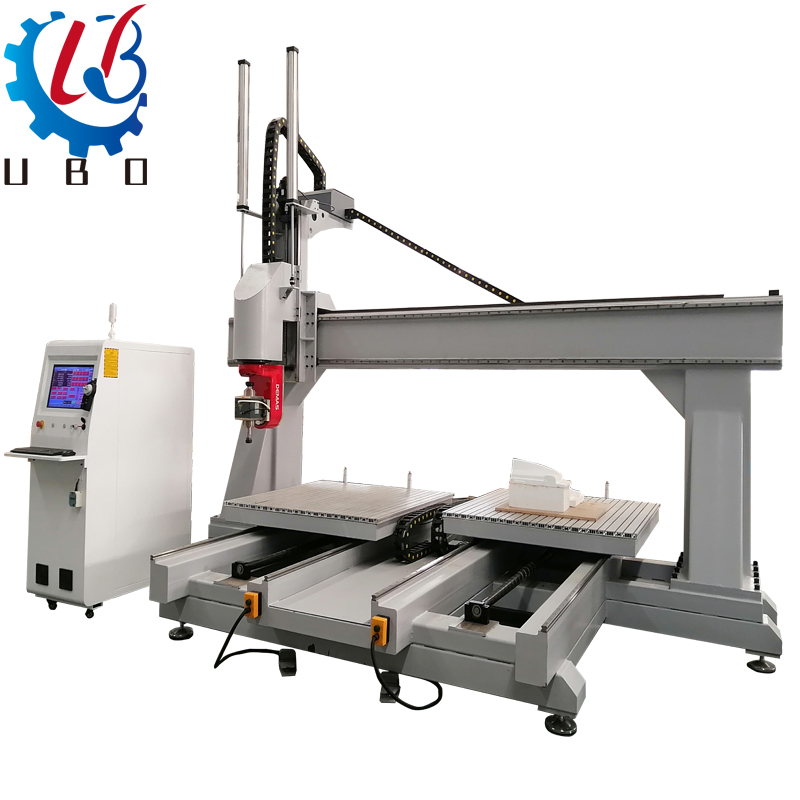

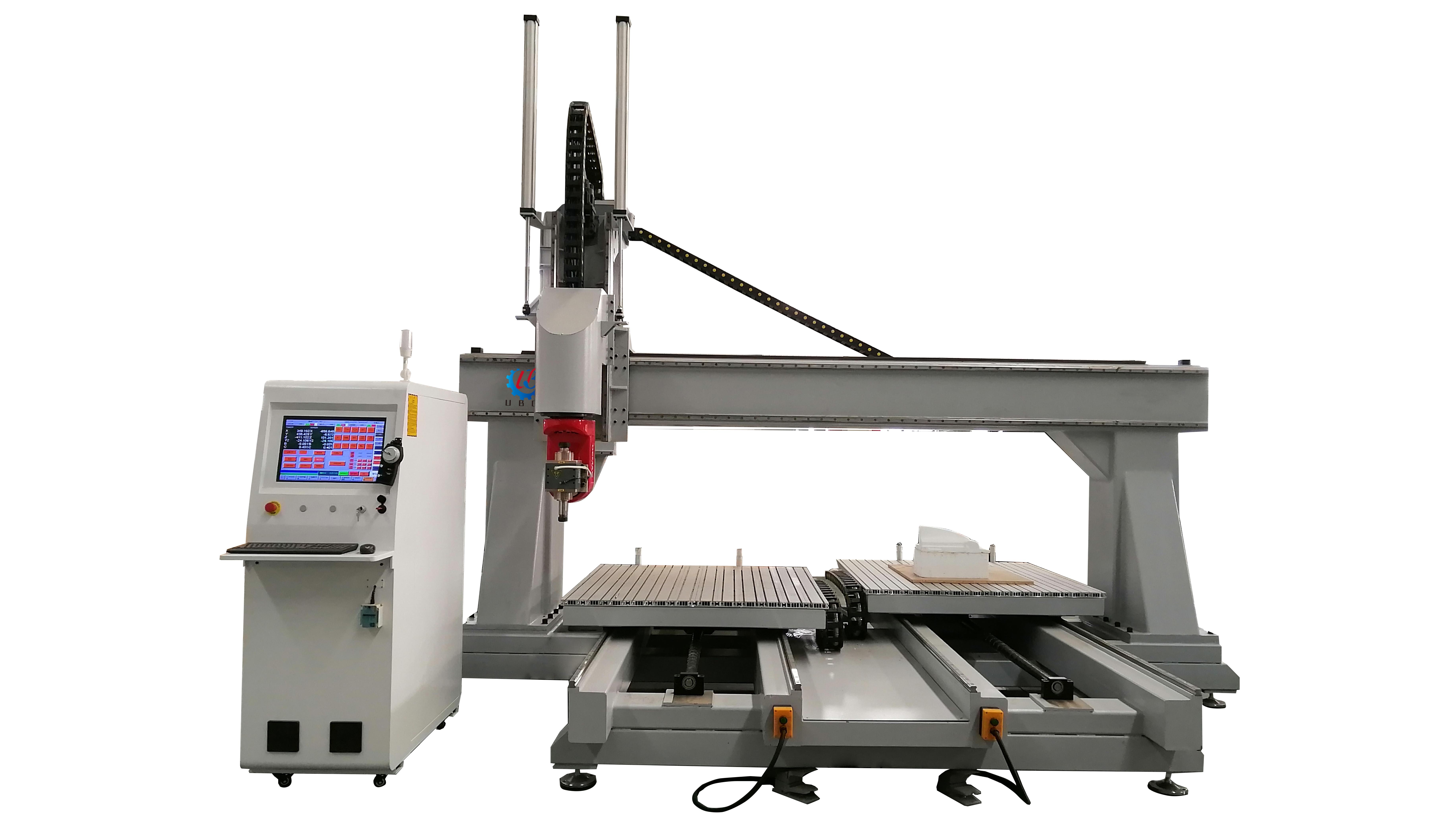

I. MACHINE PICTURE:
II. MACHINE FEATURE:
2) Imported high precision ball screw, smooth movement, to ensure that the machine tools high-precision.
3) High quality imported linear guide HIWIN/PMI has much longer life 10 times of life-time than round guide; It is stable and hard to distort.

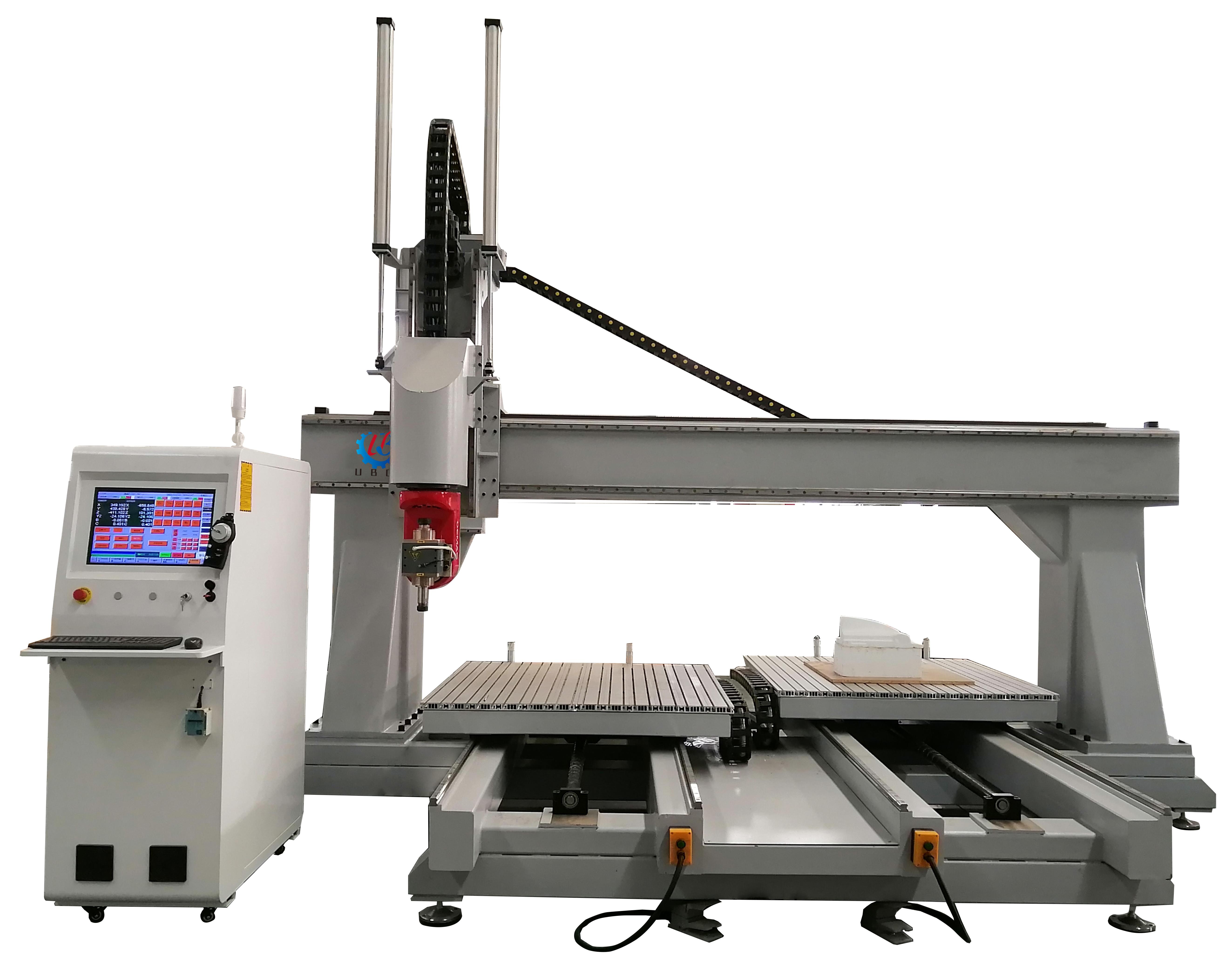

4) double moving table, more table and high efficient working.
5) High performance driven motor to ensure that the machines high speed and accuracy.
6) The Syntec control system is a very popular control system with high quality.
7) Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
III. MACHINE PARAMETERS:

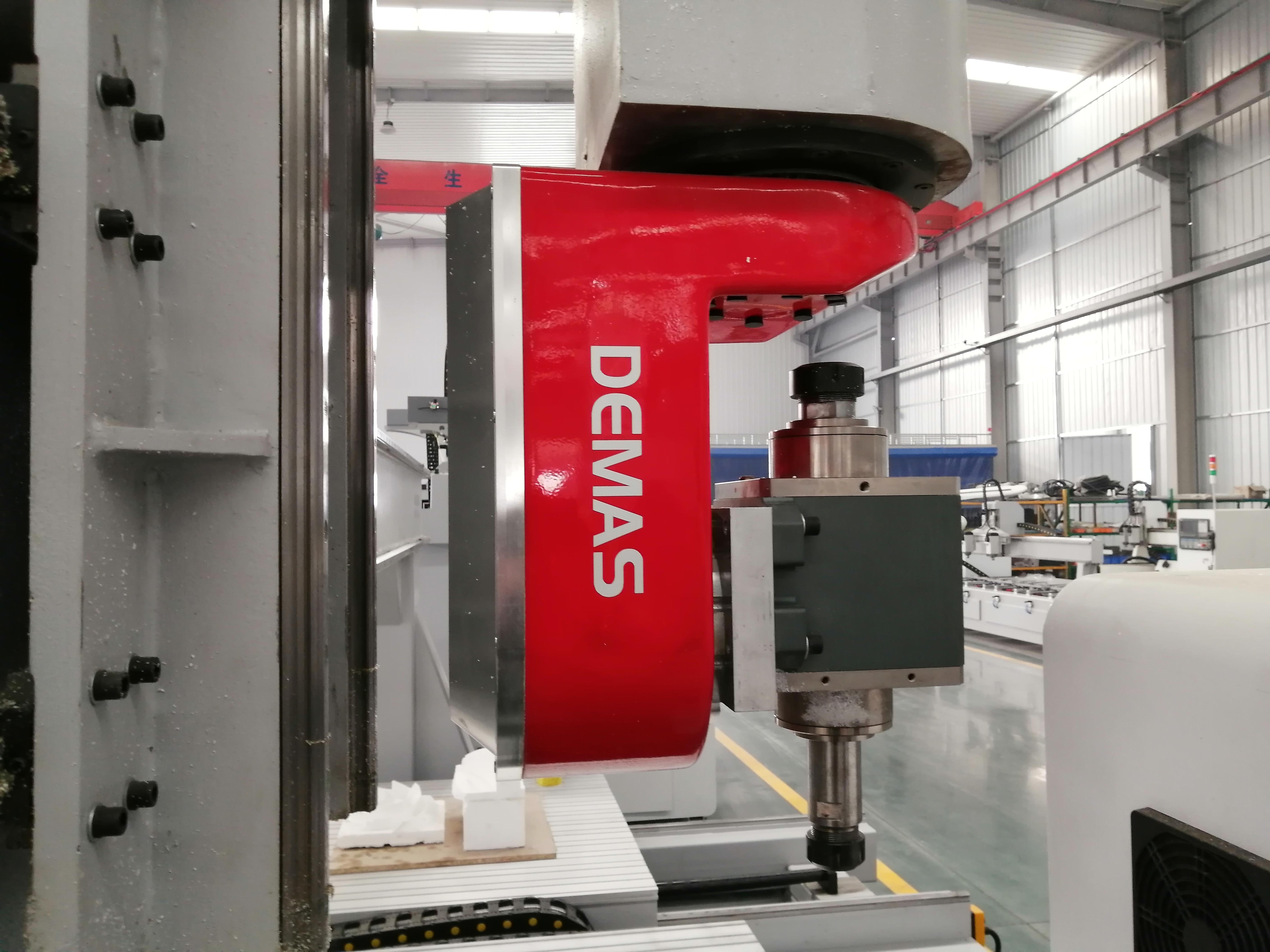

Items | Standard | ||
Model No. | UW-A1212-25A | ||
Machine body | Thickness tube welding structure | ||
Working area(mm) single | X | 1200 | |
Y | 1200 | ||
Z | 700 | ||
Structure | Table size mm(single) | 1500*1500 | |
table | Aluminum T slot table with Tool mold | ||
Transmission system | X | 30mm Taiwan HIWIN square guide rail ,TBI ball screw driving | |
Y | 30mm Taiwan HIWIN square guide rail ,TBI ball screw driving | ||
Z | 30mm Taiwan HIWIN square guide rail ,TBI ball screw driving | ||
Spindle | Power | 9 kw air-cooling HSD ATC spindle with 12 tools magazines | |
Rotating Speed | 18000rpm | ||
Cooling Type | air- cooling/pump | ||
Collet diameter | ER 32 Ø3.175,4,6 8 12.7 | ||
Inverter | Delta | ||
About drive systems | X | Syntec 1000W motor and servo driver with Shimpo reducer | |
Y | Syntec 1000W motor and servo driver with Shimpo reducer | ||
Z | Syntec 1000W motor and servo driver with brake with Shimpo reducer | ||
Control System | 5axis Syntec Control system with RCTP | ||
Data reading mode | line by line | ||
Compatible file formats | G code /PLT/DXF/ENG | ||
swing angle | A-axis swing angle | -120°⁓120° | |
C-axis rotation angle | -400°⁓400° | ||
Working Voltage | 3 phase AC380V/50/60Hz, | ||
Precision | 0.05mm | ||
speed | A/C axis :170、270°/sec | ||
XY axis feeding speed:0⁓30000mm/min | |||
Z axis feeding speed :0⁓25000mm/min | |||
XYZ feed acceleration:3m/s2 | |||
Gantry made of | Thickness Steel tube | ||
oil-inject lubrication system | Auto Oil system | ||
Power off memory | Function of re-carving after break point and power failure | ||
Maintenence tools | Tool BoxAvailable | ||
Maintenance | Service can be supplied on line | ||
Guarantee / Warranty | 36 MONTHS | ||
Tech Support | Available | - Online / Phone | |
Damaged / Spoil spare part support | Available | ||
Weight | 5000kg | ||
Delivery Time | 25 WORKING DAYS | ||
Machine Size | 5.3m*3.2m*2.9m LHW | ||
