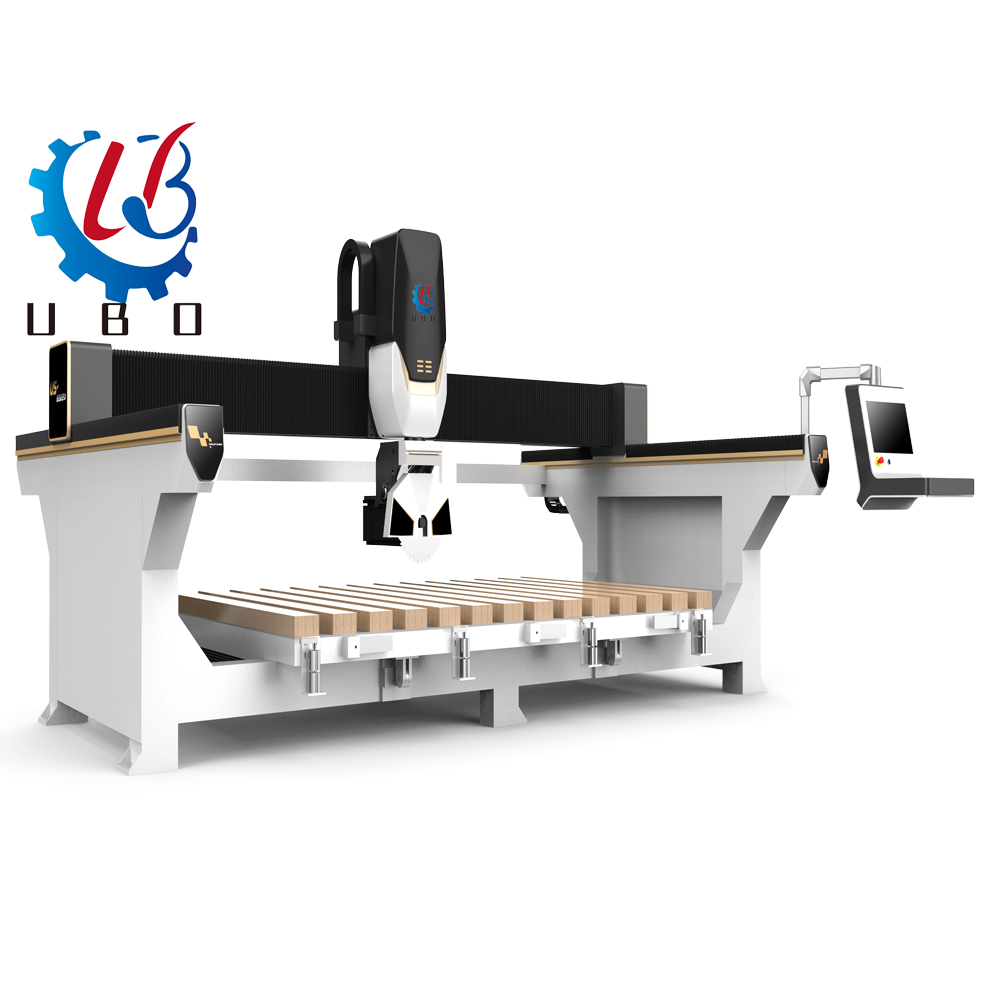

5axis marble granite cnc bridge saw swing stone cutting polishing carving slab machine

Short Description:

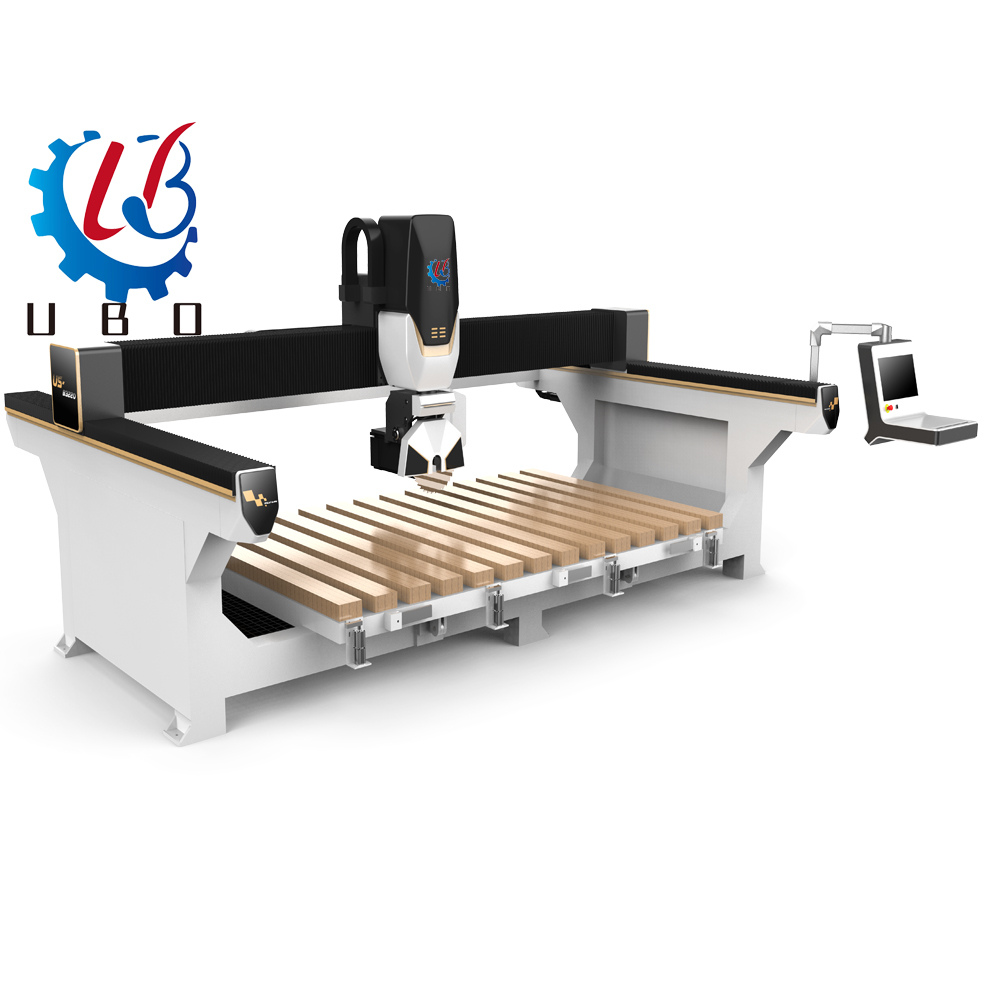

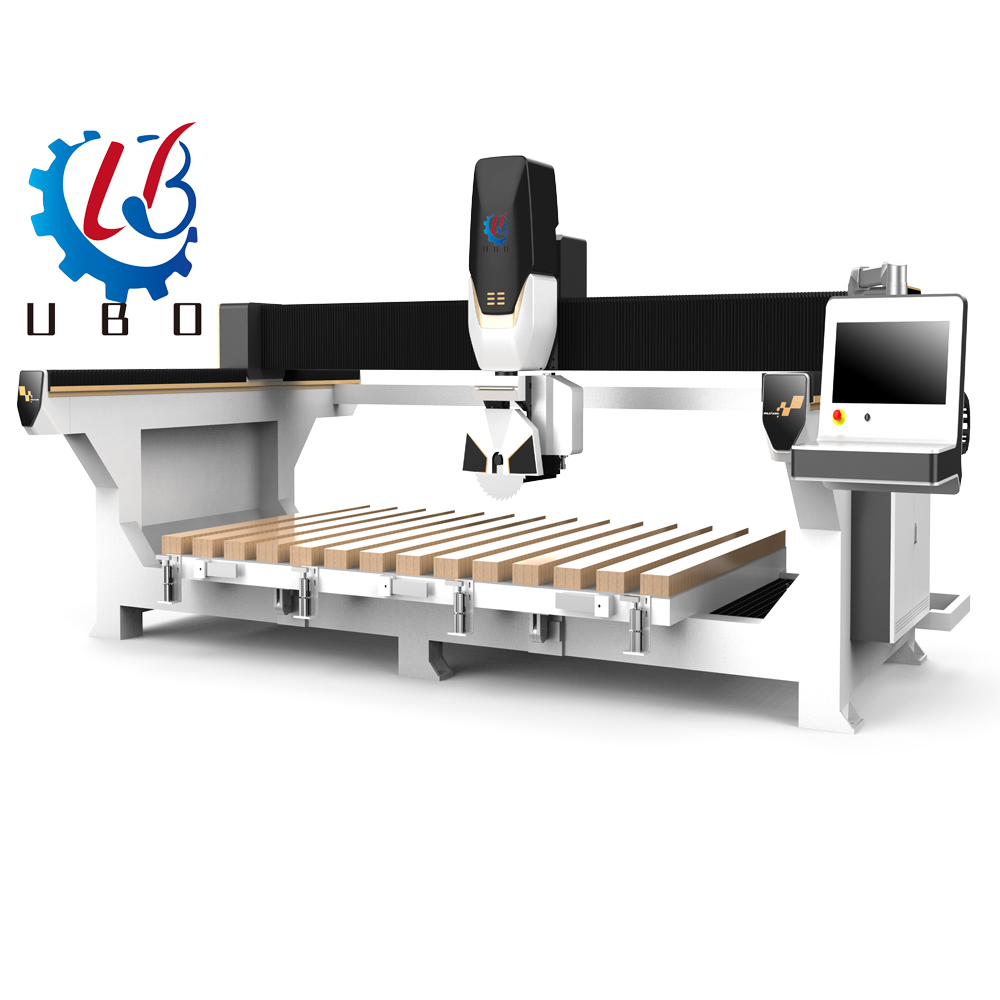

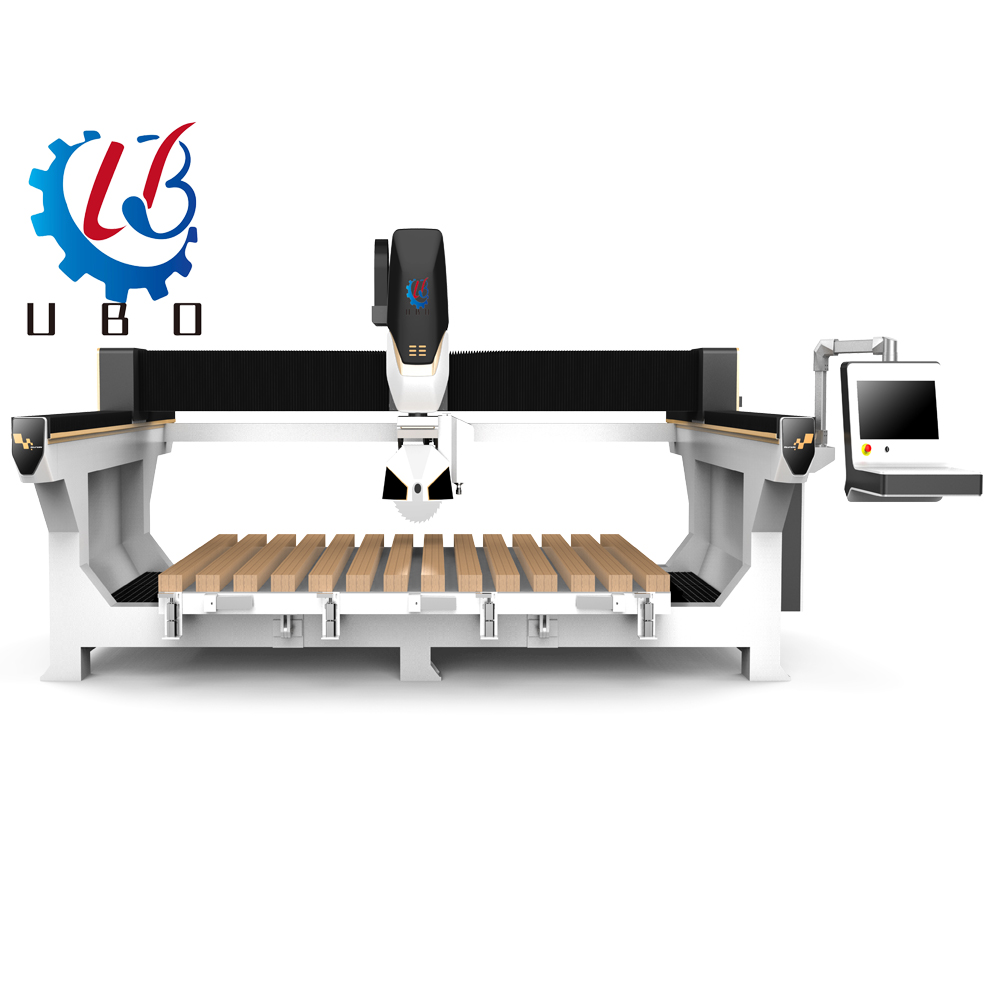

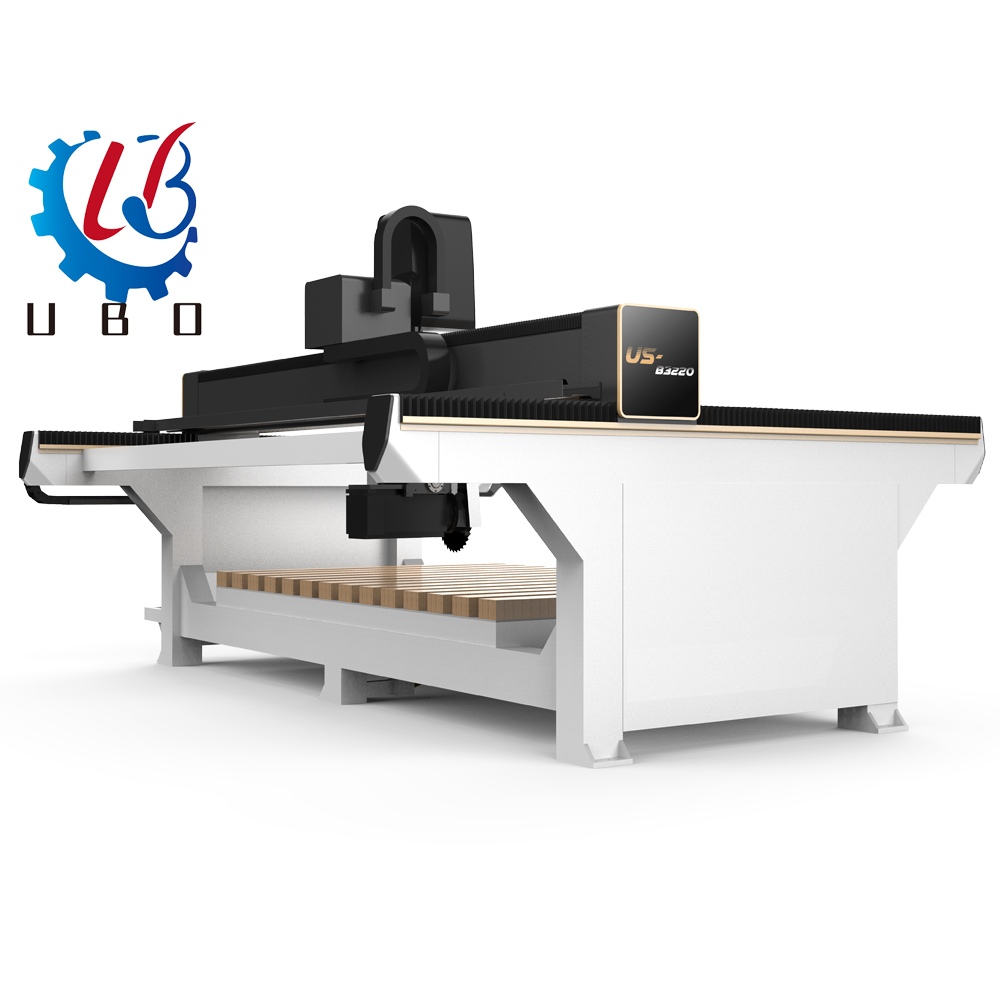

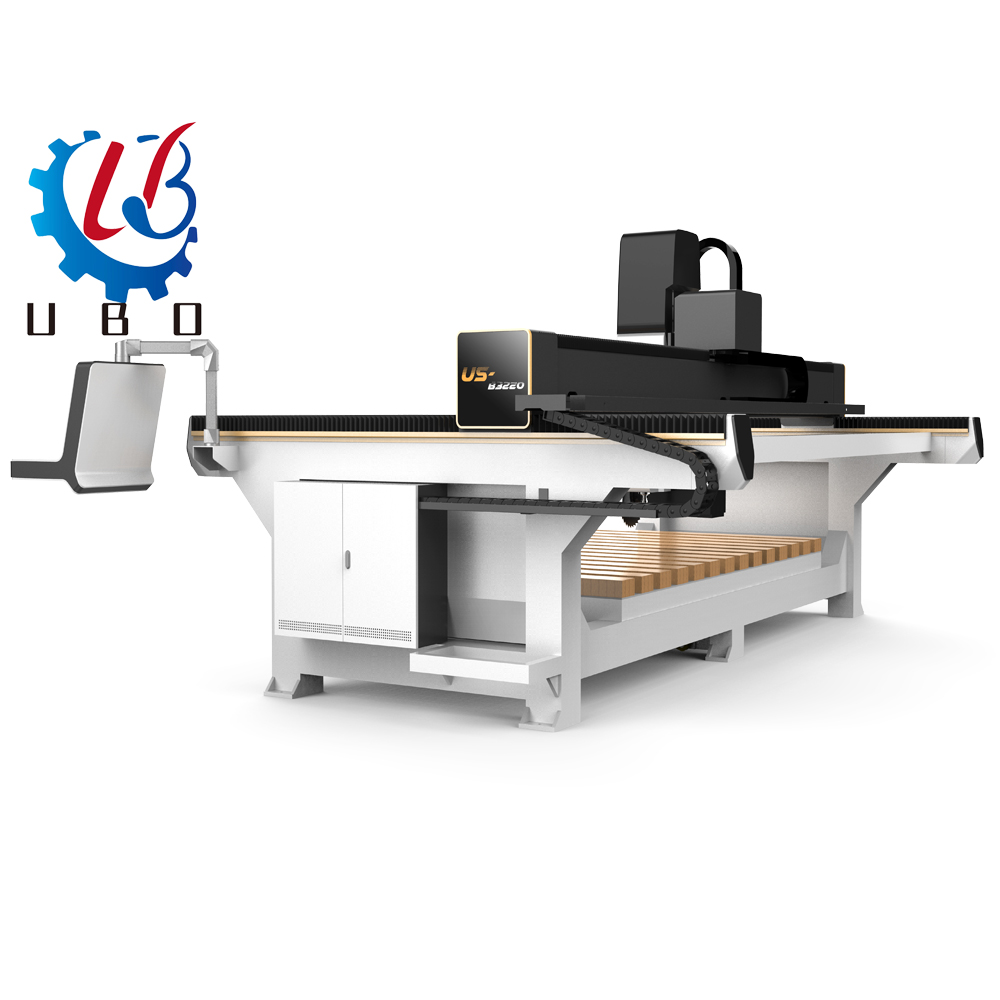

UBO B500 is the new generation multi-function processing cnc bridge cutting machine which is associated to be designed and manufactured. With pattern operation and advanced control system and synchronous CNC control system(UBOCNC self develop touch system), the machine can be easily operated easily without knowing complicated CNC knowledge.

Send email to us

Product Detail

Product Tags

Feature Of Machine

1. thickness welding body structure,Aging quenching treatment effectively prevents deformation of the bed.

2. With advanced UBOCNC self develop 15in HD Touch operation control system and all pattern operation, the machine can be operated without professional operators.

3. With powerful motor, the machine can work in much more efficient.

4. With less electricity and more efficiency, the cost is decreased much.

5. High quality accessories and electric parts are used to secure long service life and low cost.

6. intelligent processing cross-border protection, to prevent the mechanical impact due to excessive design documents processing.

7. Diversity control can separately control the processing speed, idling speed, cutting speed, greatly improving the quality of speed, greatly improving the quality of speed, greatly improving the quality of processed product and processing efficiency.

Application

1.Full automatic UBOCNC 5axis CNC bridge cutting machine, multi language conversion, table processing by one machine, x-y-z-a-b five axis linkage, more widely used, simple operation and stronger practicability.

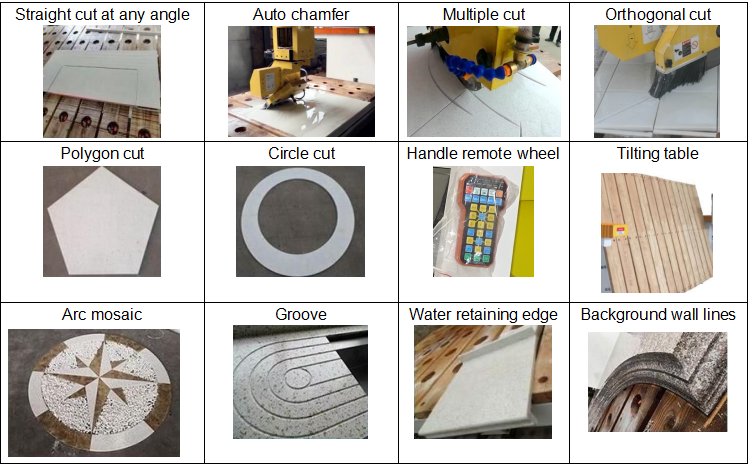

Multi-functions used: cutting, chamfering, edge grinding, slotting, drilling, circular arc and other special-shaped processing.

Main Configuration

Model	US-B3020
Programming method 1	CAD image input & Manual programming
Control method	CNC
Power	7.5KW (optional 11KW)
Working voltage	380V 3phase (customized)
R.P.M	1000-6000r/min
Blade size	350-500mm
X-axis working stroke	3000mm
Y-axis working stroke	2000mm
Z-axis working stroke	400mm
A-axis working stroke	360° free rotation
B-axis working stroke	Auto 0-90 degree chamfer
X/Y-axis cutting speed	1-2000mm/min
Z-axis cutting speed	1-1000mm/min
A cutting speed	0-10m/min
Cutting thickness	200mm
Processing precision	0.2mm
Working table size	3800x2300mm
Overall size	630749253414mm
Weight	6700KG

Machine Details & Configuration:


Self-developed friendly 15 in touch screen man-machine interface, convenient for manual direct input of instructions. With the use of wireless handwheel, the maneuverability is stronger. It can improve work efficiency and human-computer interaction is more comfortable.	Camera function--positioning&typesetting

Sucker moving slab system	Auto measuring blade diameter

Auto measuring slab thickness	Auto chamfer and powerful motor

The machine head can be tilted 45 degrees, which is more convenient for cutting arc angles.	The machine head can be rotated 360 degrees, making it easier to cut arcs and circles.

Knives can be installed, which is convenient for edge grinding and polishing, truly achieving multiple functions in one machine.	The universal outlet pipe can be rotated in any angle and direction. Effectively cool tools and saw blades.

Powerful motor ,can improve the efficient	Dustproof and waterproof design, effectively reducing pollution in the workshop

The dust-proof design of the guide rail rack effectively reduces dust pollution, improves the accuracy of operation, and can also increase the service life of the machine.	Powerful servo motor and high accuracy reducer

foot pedalThe tilting table top can be tilted up to 87 degrees, which is more convenient and fast for loading and unloading.

Pneumatic ball table and universal wheels can better help the plate move on the table, which not only saves effort, but also improves efficiency.	Auto oiling system

The red light positioning system makes it more convenient and intuitive to perceive the processing location and path.
